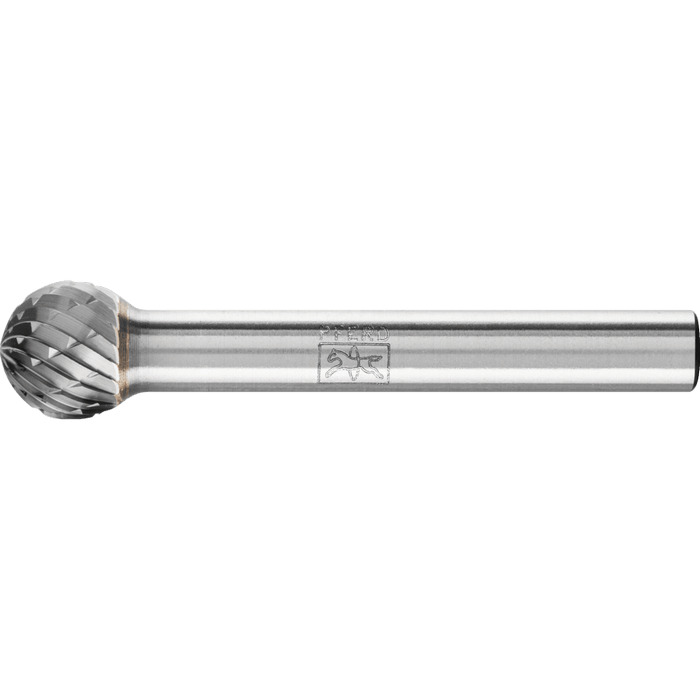

HM-Frässtift KUD 1009/6 Z3 PLUS
Ø 10 mm x L 9 mm Schaft Ø 6 mm Kugelform, PferdArtikelnummer: 1017831Lieferantennummer: 21112726Zolltarifnummer: 82077010EAN: 4007220046951
Ausgabe:
1 StückPaketfähig
Login
Beschreibung
Hartmetall · Schaft-Ø 6 mm · Form F, (KUD nach DIN 8033) · Kugelform
Spezifikationen
Form
KUD
Gesamtlänge
49 mm
Kopflänge
9 mm
Length, toothed
9 mm
Length, total
49 mm
RPM from, grey cast iron, white cast iron
14000 RPM
RPM from, hardened and tempered steels over 1,200 N/mm²
8000 RPM
RPM from, high-temperature resistant materials
8000 RPM
RPM from, stainless and acid-resistant steels
8000 RPM
RPM from, steels up to 1,200 N/mm²
14000 RPM
RPM up to, grey cast iron, white cast iron
19000 RPM
RPM up to, hardened and tempered steels over 1,200 N/mm²
11000 RPM
RPM up to, high-temperature resistant materials
14000 RPM
RPM up to, stainless and acid-resistant steels
11000 RPM
RPM up to, steels up to 1,200 N/mm²
19000 RPM
Schaft-Ø
6 mm
Schneidstoff
Hartmetall
Series
byly_HM_KUD_2111
Toothing
3 PLUS
Verzahnung
3 PLUS
Ø
10 mm
Ø Shaft metric
6 mm
ø Außen metrisch
10 mm
