Beschreibung
Carbon steel chocks (E-CS) are recommended for indoor use. They provide a cost-effective solution for standard applications, while offering reliable performance in environments such as on the factory floor. Applying additives at the mating surfaces provides initial protection – both before and during installation – and prevents parts from seizing when they are adjusted.

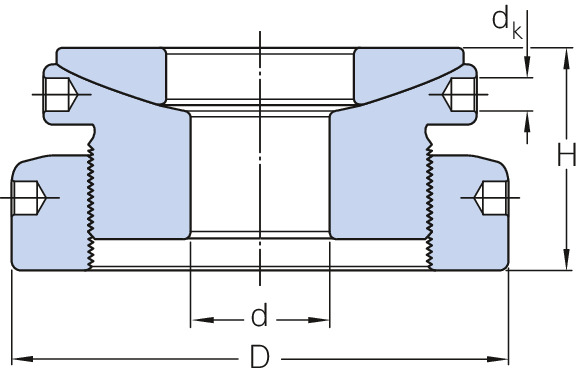

Spezifikationen
Anzugsdrehmoment für max. Schraubengröße
215 Nm
Anzugsdrehmoment für min. Schraubengröße
85 Nm
Außendurchmesser
65 mm
Durchmesser Schraubbohrung
18 mm
Farbe
grau-metallic
Gewicht
0,56 kg
Maschinenlast
15 kN
Material
Kohlenstoffstahl
Max. Höhe
40 mm
Maximale Schraubengröße
M16
Mimimale Schraubengröße
M12
Min. Höhe
30 mm
Nennhöhe
34 mm
Probebelastung
90 kN
Reduzierte Mindesthöhe
24 mm
Schlüssellochdurchmesser
6 mm
Teilung
1.5 mm
Werkstoff
Kohlenstoffstahl
