Beschreibung

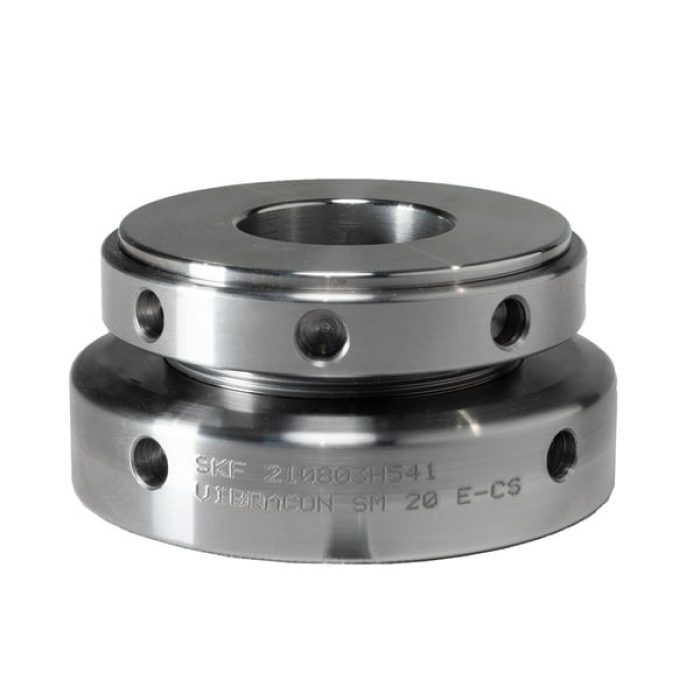

Carbon steel chocks (E-CS) are recommended for indoor use. They provide a cost-effective solution for standard applications, while offering reliable performance in environments such as on the factory floor. Applying additives at the mating surfaces provides initial protection – both before and during installation – and prevents parts from seizing when they are adjusted.
Spezifikationen
Anzugsdrehmoment für max. Schraubengröße
730 Nm
Anzugsdrehmoment für min. Schraubengröße
420 Nm
Außendurchmesser
100 mm
Durchmesser Schraubbohrung
27 mm
Farbe
grau-metallic
Gewicht
1,83 kg
Maschinenlast
35 kN
Material
Kohlenstoffstahl
Max. Höhe
54 mm
Maximale Schraubengröße
M24
Mimimale Schraubengröße
M20
Min. Höhe
40 mm
Nennhöhe
45 mm
Probebelastung
200 kN
Reduzierte Mindesthöhe
30 mm
Schlüssellochdurchmesser
8 mm
Teilung
1.5 mm
Werkstoff
Kohlenstoffstahl
