Beschreibung

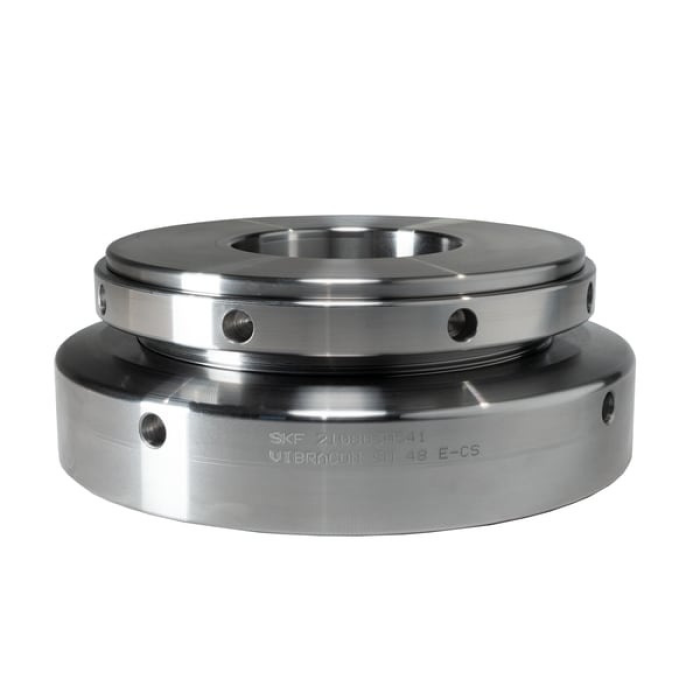

Carbon steel chocks (E-CS) are recommended for indoor use. They provide a cost-effective solution for standard applications, while offering reliable performance in environments such as on the factory floor. Applying additives at the mating surfaces provides initial protection – both before and during installation – and prevents parts from seizing when they are adjusted.
Spezifikationen
Anzugsdrehmoment für max. Schraubengröße
9660 Nm
Anzugsdrehmoment für min. Schraubengröße
6210 Nm
Außendurchmesser
210 mm
Durchmesser Schraubbohrung
60 mm
Farbe
grau-metallic
Gewicht
13,30 kg
Maschinenlast
200 kN
Material
Kohlenstoffstahl
Max. Höhe
89 mm
Maximale Schraubengröße
M56
Mimimale Schraubengröße
M48
Min. Höhe
70 mm
Nennhöhe
77 mm
Probebelastung
1150 kN
Reduzierte Mindesthöhe
59 mm
Schlüssellochdurchmesser
10 mm
Teilung
3 mm
Werkstoff
Kohlenstoffstahl
