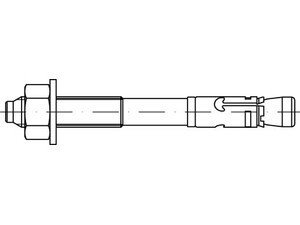

Bolt anchor option 1
MAX 12/10 R Stainless steel A4 Dowel length=110 mm, UpatA 4
Item-no.: 1059169EAN: 4000657003450
PU (PU NW): 20 PiecePU (Packaging): 20 PieceQuantity:
1 PiecePackable
Item available in 12 variants:
Price and stock visible after login
Description
article 88741 A 4 MAX UPAT express anchors MAX with expanding cones, nut and washer - dimension: MAX 12/ 10/110 PU=S (20 pieces)
Attributes
Anchor depth
70 mm
Anchor depth stand.
70 / 50 mm
Anchor length
110 mm
Anchor.red.
50 mm
Anchor.stand.
70 mm
Application
Outdoors and damp areas
Conditions of use
Outdoors and damp areas
Drill nominal diameter
12 mm
Durchmesser
12.00 mm
ETA approval
Ja
Fire protection
Ja
Fire resistance
R120
Form
MAX
Gewicht
10.200 KGM
Head embossing
B
Installation torque
60 Nm
Length (battery)
10.00 mm
Material
Stainless steel
Material
A 4
Max. effective length
10 mm
Max. usable length stand.
10 / 30 mm
Min. drill hole depth for push-through installation
100 mm
Normart
REYHER-Artikel
Normnummer
88741
Oberfläche
Ohne Oberflächenangabe
Plain washer
12,5 x 2,5 mm
Screw thread
M12 x 61 mm
Seismic approval
C1 / C2
Suitability distance mounting
No
Suitability for push-fit installation
Ja
Suitability for push-through installation
Ja
Thread dimension metric
12 mm
Thread length
61 mm
Useful L. stand.
10 mm
Useful. L. red.
30 mm
VDS approval
Ja
Wrench width
19 mm
