Schraubensicherung

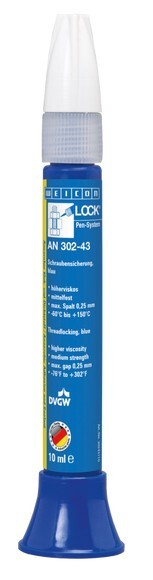

10 ml Pen, mittelfest, höherviskos Weicon AN 302-43, DVGW Trinkwasserzul.

Item-no.: 1123091Supplier number: 10030474EAN: 4047322071901

PU (Packaging): 30 PieceQuantity:  1 PiecePackable

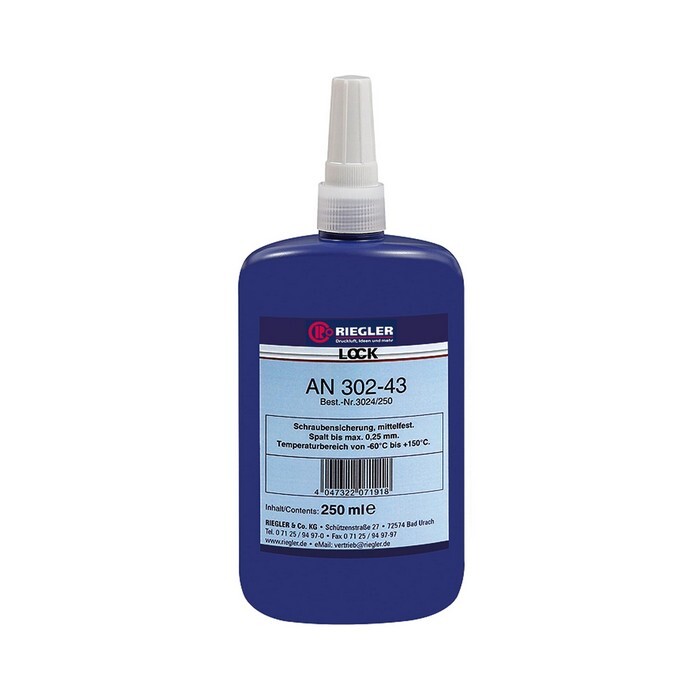

Item available in 3 variants:

Description

Lock AN 302-43, Anaerobic glue, Medium tight, Higher viscosity, Screw lock, DVGW, Temp. -60 °C to 200 °C, 10 ml. The standard adhesive for locking all screws and threads up to size M36. For economical securing, fastening, sealing of screw, joint and surface connections. Simple, fast and economical in use, hand-tight within minutes, hardens in a few hours. High-temperature resistant. Disassembled normally.

Attributes

Breaking torque

17 - 22 Nm

Bundle

Pen

Colour

blue

Content

10 ml

DVGW-Zulassung

DIN EN 751-1:1997-05

End hardness|(100 % of strength)

1-3 Hours

Festigkeit

mittelfest

Fluoreszierend

For thread connection up to

M 36

Further torque

8 - 12 Nm

Gap bridging up to max.

0,25 mm

Hand strength

10 - 20 Min.

Sales bundle

Plastic bottle

Shear strength Nmm² (DIN 54452)

9 - 13 N/mm²

Temperaturbeständigkeit max.

200 °C

Temperaturbeständigkeit min.

-60 °C

Temperature resistance

-60°C to +200°C

Viscosity

2.000 - 7.000 mt mPa·s
