2/2-way solenoid valve NC
IG 1/4", 0-9 bar, NW 2.5 mm, FPM, BF2 Direct operated, 24 V DC, brassItem-no.: 1121879Supplier number: MV 1325 Gcustoms tariff number: 84818099EAN: 4047322158831
Quantity:
1 PiecePackable
Item available in 6 variants:
Price and stock visible after login
Description
2/2-way solenoid valve brass, NC, directly operated, 24V DC, 8W, Medium temp. -10°C to 140°C, FKM, G 1/4, PN 0 - 9bar. Economy series available in three different versions - Directly operated - Combined operation - Pilot-operated For all applications with compressed air, neutral gases or low-viscosity, neutral media.
Attributes

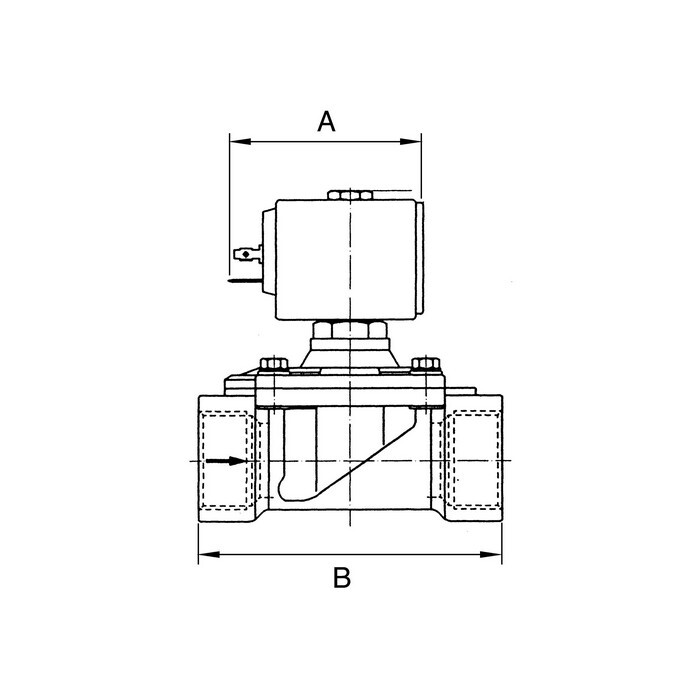

A
54,0 mm
Ambient temperature max.
80 °C
Ambient temperature min.
-10 °C
DN
2,5
Design
2
Electrical connection
for cable plug PG 9/PG 11, to ISO 4400
Function
normally closed (NC)
Housing
brass
Inner parts
Stainless steel
Max. operating pressure
9 bar
Medium temperature max.
140 °C
Medium temperature min.
-10 °C
Operating pressure min.
0 bar
Protection class
IP 65 (when using the appliance inlet)
Riegler article number
102893
Screw thread
G 1/4
Sealing material
FPM
Valve seat
brass
b
40,0 mm
