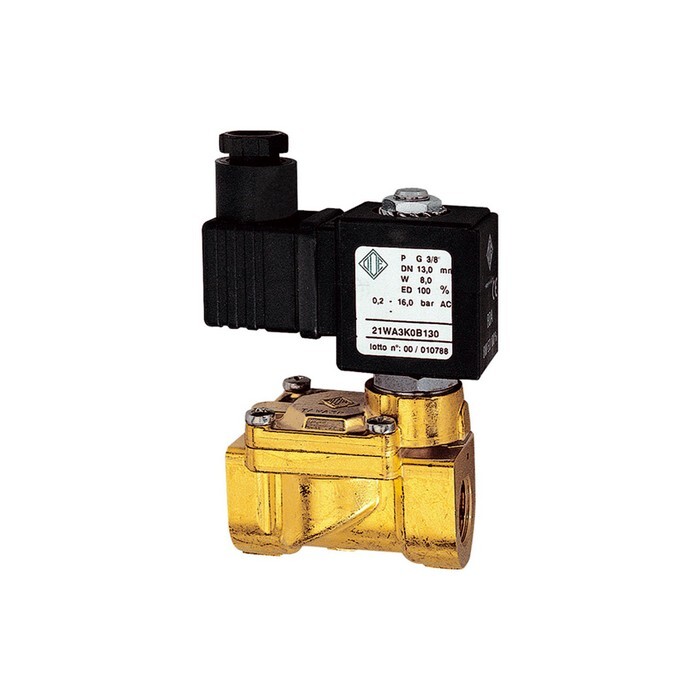

2/2-way solenoid valve NO
IG 1/2", 0.2-16 bar, NW 13 mm, NBR, BF4 pilot operated, 24 V DC, brassItem-no.: 1175983Supplier number: MV 1392 Gcustoms tariff number: 84818099EAN: 4047322159654
Quantity:
1 PiecePackable
Item available in 7 variants:
Price and stock visible after login
Description
2/2-way solenoid valve brass, NO, pilot operated, 24 V DC, Medium temperature -10 °C to 90 °C, G 1/2, PN 0.2 - 16 bar. Economy series available in three different versions - Directly operated - Combined operation - Pilot-operated For all applications with compressed air, neutral gases or low-viscosity, neutral media.
Attributes

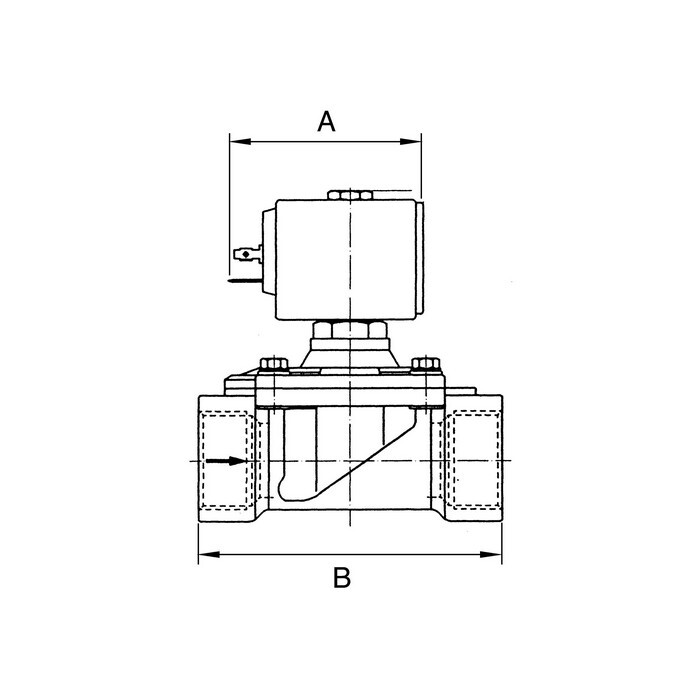

A
54,0 mm
Ambient temperature max.
80 °C
Ambient temperature min.
-10 °C
DN
13
Design
4
Electrical connection
for cable plug PG 9/PG 11, to ISO 4400
Function
de-energised open (NO)
Housing
brass
Inner parts
Stainless steel
Max. operating pressure
16 bar
Medium temperature max.
90 °C
Medium temperature min.
-10 °C
Operating pressure min.
0,2 bar
Protection class
IP 65 (when using the appliance inlet)
Riegler article number
102955
Screw thread
G 1/2
Sealing material
NBR
Valve seat
brass
b
66,0 mm
