2-Komponenten Epoxydharz-Klebstoff

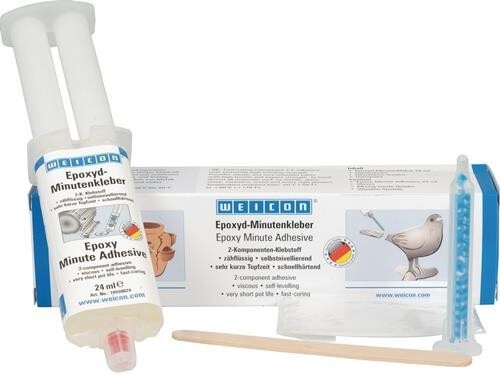

Set 4-tlg, mit 24 ml Doppelspritze Weicon Epoxyd-MinutenkleberItem-no.: 1443839Supplier number: 10057686customs tariff number: 35061000EAN: 4024596078959
PU (Packaging): 12 SetQuantity:
1 Set
=
1 PiecePackable
Item available in 2 variants:
Price and stock visible after login
Description
WEICON Epoxy Minute Adhesive can be used on numerous materials such as metal, plastic, fibre-reinforced materials, ceramics, glass, stone and wood. The adhesive is suitable for construction and assembly works whenever the use of the WEICON Easy-Mix System is inefficient.
Attributes
Aluminium sandblasted
19 N/mm²
Base
Epoxy resin
Bending strength |DIN EN ISO 178
58.0 MPa
Bundle
Set
Chemical basis
Epoxy resin, unfilled
Colour
transparent
Compressive strength|DIN EN ISO 604
9.0 MPa
Consistency
viscous
Content
Glue/mixing nozzle/wooden spatula/gloves
Density of the mixture
1,15 g/cm³
Dielectric strength|DIN EN 60243-1 (20°C)
20 kV/mm
E-modulus (tensile)|DIN EN ISO 527-2
2.000 - 2.500 MPa
End hardness|(100 % of strength)
24 Hours
Filling material
unfilled
Gap bridging up to max.
2 mm
Hardening time
Final hardness after 24 hours
Hardness (Shore D)|DIN ISO 7619
65
Manual strength|(35 % of strength)
30 Min.
Mechanically loadable after|(50 % of strength)
1 Hours
Mixing ratio by weight
1:1
PVC-hard roughened
13.0 N/mm²
Processing temperature
+10 °C to +30 °C
Sales bundle
Set
Shrinkage
2,0 %
Steel 1.0338 sandblasted
20.0 N/mm²
Temperature resistance
-50 to +80 °C
Tensile strength|DIN EN ISO 527-2
40.0 MPa
Topfzeit|bei 20 °C, 10 ml Ansatz
3-4 Min.
Viscosity of the mixture|at +20 °C
8.500 mPa·s
