2-Komponenten Epoxydharz-Reparaturmasse

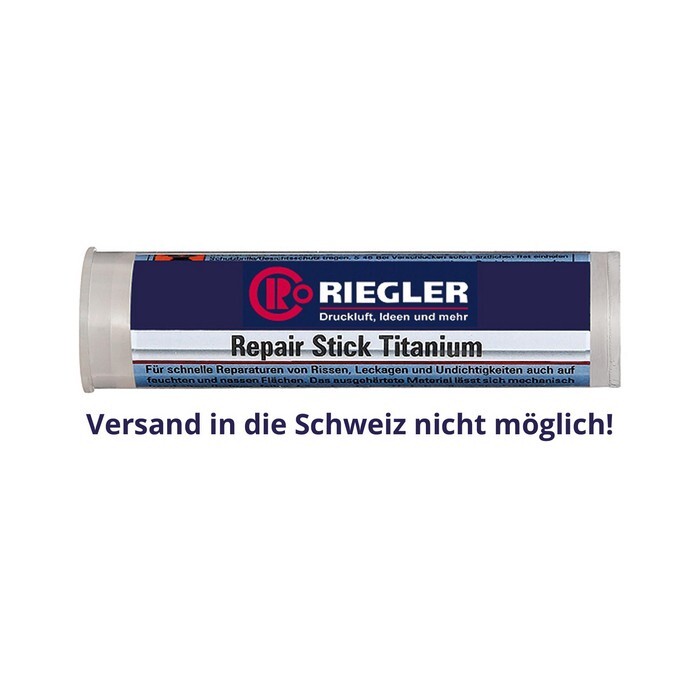

57 g Dose, knetbar Weicon Repair-Stick TitaniumItem-no.: 1123575Supplier number: 10011973EAN: 4047322207157
PU (Packaging): 24 PieceQuantity:
1 PiecePackable
Price and stock visible after login
Description
Repair stick titanium, Epoxy resin filled with titanium, Temperature resistance -50°C to 280°C, 57 g. For permanent, high-temperature and wear resistant repairs or bonds of metal parts (tanks, conduit pipes, aluminium, light metal and die-cast parts, shafts, pumps, casings, defective threads).
Attributes
Adhesive strength|DIN EN ISO 4624
7.0 MPa
Base
Epoxy
Colour
brown
Component temperature
>3 °C above dew point
Compressive strength|DIN EN ISO 604
55 MPa
Consistency
Plasticine
Construction material class|DIN 4102
B2
Density of the mixture
1,9 g/cm³
Dielectric strength|DIN EN 60455-3-8
11,8 kV/mm
Electrical resistance|ASTM D 257
5 Ω·cm
End hardness|(100 % of strength)
72 at room temperature 24 at +65 °C Hours
Filling material
Titanium
Gap bridging up to max.
15 mm
Gebindegröße
57 g
Hand strength
60 Min.
Hardness (Shore D)|DIN ISO 7619
80±3
Magnetic
No
Mechanically loadable after|(80 % of strength)
8 Hours
Mixing ratio by weight
1:1
Processing temperature
+15 °C to +40 °C °C
Relative humidity
< 85 %
Sales bundle
Cartridge
Shrinkage
<1,0 %
Temperaturbeständigkeit max.
230 °C
Temperaturbeständigkeit min.
-50 °C
Temperature resistance
-50 °C to +280 °C, short-term up to +300 °C
Through resistance|DIN EN 62631-3-1
ca. 3·10¹º Ω·m
Topfzeit|bei 20 °C, 10 g Ansatz
90 Min.
