2-component construction adhesive

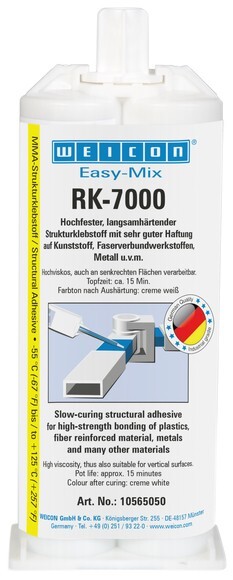

50 g double cartridge, mixing nozzle Weicon Easy-Mix RK-7000Item-no.: 1177118Supplier number: 10018563EAN: 4024596021078
PU (Packaging): 6 PieceQuantity:
1 PiecePackable
Price and stock visible after login
Description
WEICON Easy-Mix RK-7000 can be used to bond numerous materials such as plastics, metals and ceramics with high tensile, shear and peel strength. It is particularly suitable for structural bondings where high strength connections are required. It is highly viscous and is therefore suitable for processing on vertical surfaces. WEICON RK-7000 is universally applicable and can be used, for example, in plastics technology, in metal construction, in car body and vehicle construction, in mechanical engineering, in electrical engineering, in wood processing or in trade show and exhibition construction.
Attributes
ABS
7 N/mm²
Aluminium sandblasted
20 N/mm²
Base
Methyl methacrylate
CFRP
22.0 N/mm²
Colour
creamy white, milky
Consistency
viscous
Construction material class|DIN 4102
B2
Curing temperature
> +16 °C
Density of the mixture
0,98-1,02 g/cm³
Dielectric strength|DIN EN 60243-1 (20°C)
21 kV/mm
E-modulus (tensile)|DIN EN ISO 527-2
1200 - 1500 MPa
Elongation at break (tensile)|DIN EN ISO 527-2
28 %
End hardness|(100 % of strength)
12 Hours
GRP
21.0 N/mm²
Gap bridging up to max.
5 mm
Manual strength|(35 % of strength)
40 Min.
Mechanically loadable after|(50 % of strength)
60 Min.
Mixing ratio by weight
1:1
PC (polycarbonate)
11 N/mm²
PMMA
9 N/mm²
PVC-hard roughened
12.0 N/mm²
Polyamide 6.6
1 N/mm²
Processing temperature
+10 °C to +40 °C °C
Production method
Easy-Mix
Sales bundle
Cartridge
Stainless steel V2A sandblasted
22.0 N/mm²
Steel 1.0338 sandblasted
23.0 N/mm²
Temperature conductivity
0.118 mm²/s
Temperature resistance
-55 °C to +125 °C
Tensile strength|DIN EN ISO 527-2
24.0 N/mm²
Tg after curing at RT|(DSC)
-39,8 °C
Thermal capacity|DIN EN ISO 22007-4
1.453 J/(g·K)
Thermal conductivity|DIN EN ISO 22007-4
0.2 W/m·K
Through resistance|DIN EN 62631-3-1
1,83 · 10¹¹ Ω·m
Topfzeit|bei 20 °C
15 Min.
Viscosity of the mixture
40.000-60.000 mPa·s
