3/2-Wegeventil

G 1/2, NO monostabil, elektopneumatisch

Item-no.: 1732454Supplier number: 7030020400customs tariff number: 84818079EAN: 4047322771658

Quantity:  1 PiecePackable

Item available in 462 variants:

Description

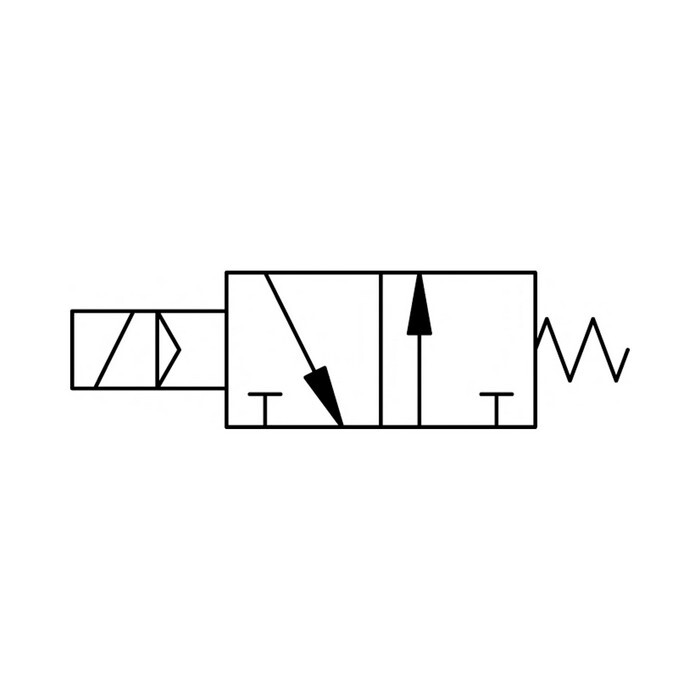

3/2-way valve, electropneumatic, monostable, G 1/2, NO, p = 2.5 … 10 bar, T = -10 … 60 °C, aluminium, without connector/coil. Traditional way valves of series 70 in electropneumatic version. These valves have a wide range of applications as bushing valves, direct mounting on the cylinder with special adapters or as series valves with multi-base plates and individual interlinking plates (supply strips).

Attributes

Actuation

monostable

Ambient temperature max.

60 °C

Ambient temperature min.

-10 °C

Connection

G 1/2

DN

15

Durchflusswertmessung 1

Durchfluss bei 6 bar und ∆p 0,5 bar

Durchflusswertmessung 2

Durchfluss bei 6 bar und Δp 1 bar

Flow rate 1

3200 Nl/min

Flow rate 2

4600 Nl/min

Function

3/2 NO

Lieferumfang

ohne Stecker und Spule

Manual override

resting

Max. operating pressure

10 bar

Medium

Filtered compressed air with or without oiling. If oiled, then continuously.

Medium temperature max.

60 °C

Medium temperature min.

-10 °C

Operating pressure min.

2,5 bar

Sealing material

NBR

Steuerluftanschluss

-

Steuerluftzufuhr

intern

Version

Electropneumatic

Voltage

without tension
