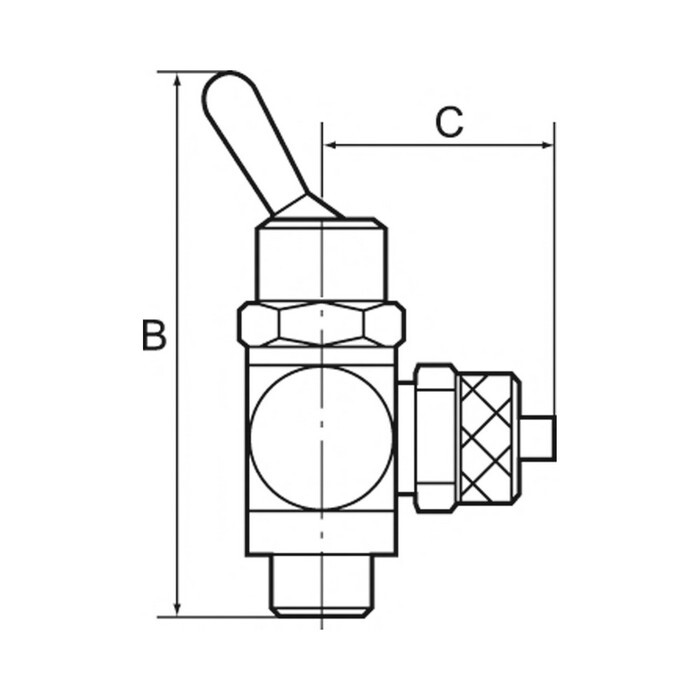

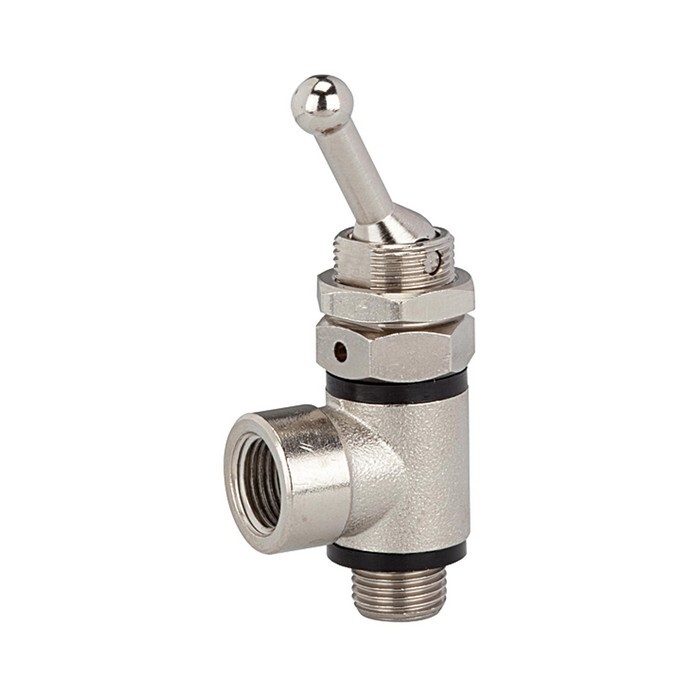

3/2-way toggle valve AG IG 8 max bar Brass, quick-release fitting

3/2-way toggle lever valve, Hose side, screw connection hose G1/8 IT, G 1/8, PN max.8bar, Temp. -20°C to 80°C, nickel-plated brass. Manually operated toggle valve, 3/2-way types. For all applications where compressed air must be switched on or off quickly and easily or a cylinder operated manually. Designed as a banjo-type valve with a hollow bolt and ring piece. Suitable for screwing directly into the equipment or for panel mounting. Compact type of construction, also ideal where space is restricted.
