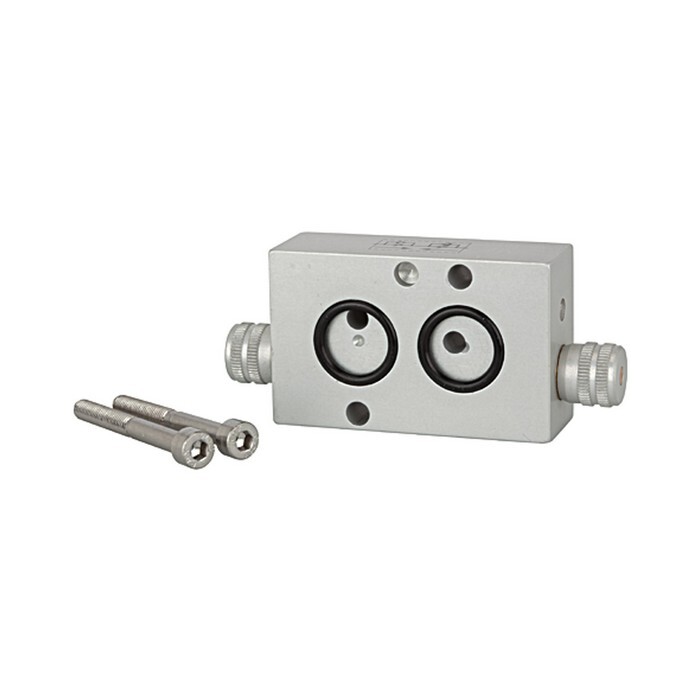

Aluminium 3-way restrictor plate
DN5, 650l/min, knurled screw for Namur valveItem-no.: 1238138Supplier number: 551.41customs tariff number: 84812090EAN: 4047322272506
Quantity:
1 PiecePackable
Item available in 4 variants:
Price and stock visible after login
Description

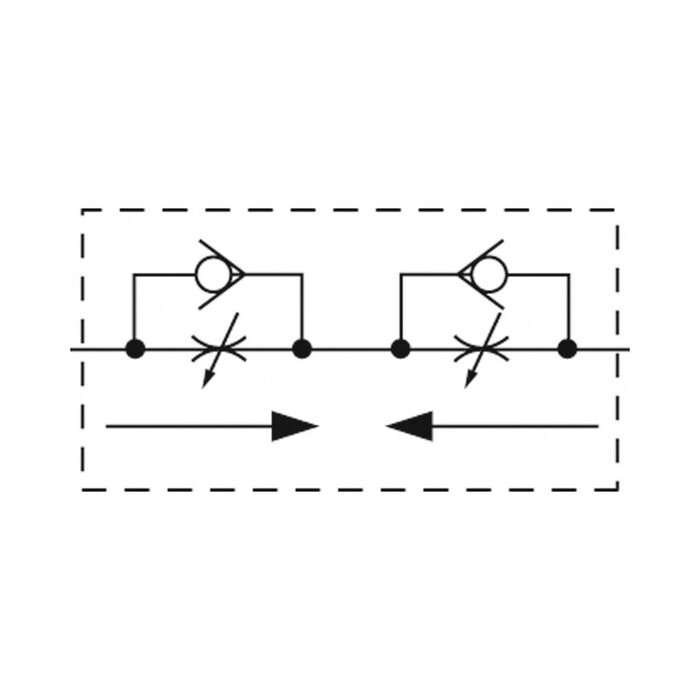

Throttle plate for NAMUR valves, Anodised aluminium, Temp. -20 °C to 70 °C, Working pressure 0.5 - 10 bar, 3-way, Knurled screw. Block-form flow regulator as an intermediate plate between the control valve and actuator acc. to the G 1/4 NAMUR standard. 3/2-way flow regulators: Independent regulation of the forward and return strokes of a single-acting pneumatic actuator. 5/2-way flow regulators: Regulation of the forward and return strokes of a double-acting pneumatic actuator.
Attributes
Actuation
Knurled screw
DN
5
Flow rate
650 l/min
Function
3-way
Housing
Anodised aluminium
Medium
Air, neutral gases (filtered)
Operating temperature max.
70 °C
Operating temperature min.
-20 °C
Riegler article number
103663
Scope of delivery
1 coding pin, 2 O-rings, 2 fixing screws
Sealing material
NBR
Working pressure max.
10 bar
Working pressure min.
0,5 bar
