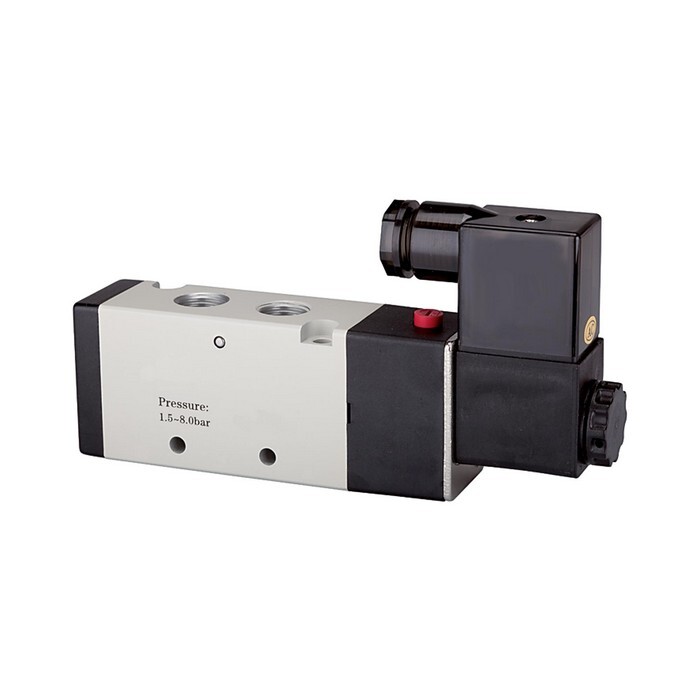

5/2-Wegeventil Serie 4V
IG 3/8" 1,5-8 bar, 1500l/min, G1/4" Ent. 230V 50 Hz,monostabil, Alu leg., elekt.Item-no.: 1176279Supplier number: 517.2105customs tariff number: 84818079EAN: 4047322310604
Quantity:
1 PiecePackable
Item available in 14 variants:
Price and stock visible after login
Description
5/2-way valve, electropneumatic, »4V«, monostable, G 3/8, 230 V, 50 Hz, Operating pressure 1.5 - 8 bar, Temp. -20 °C to 70 °C. 5/2-way pilot valves - Electro-pneumatic -
Attributes
Actuation
monostable
BG
300
Connection
G 3/8
Electrical connection
Cable plug form B according to ISO 4400
Flow rate
1500 l/min
Function
5/2
Manual override
latching/touching
Max. operating pressure
8 bar
Operating pressure min.
1,5 bar
Protection class
IP 65
Riegler article number
116135
Size
300

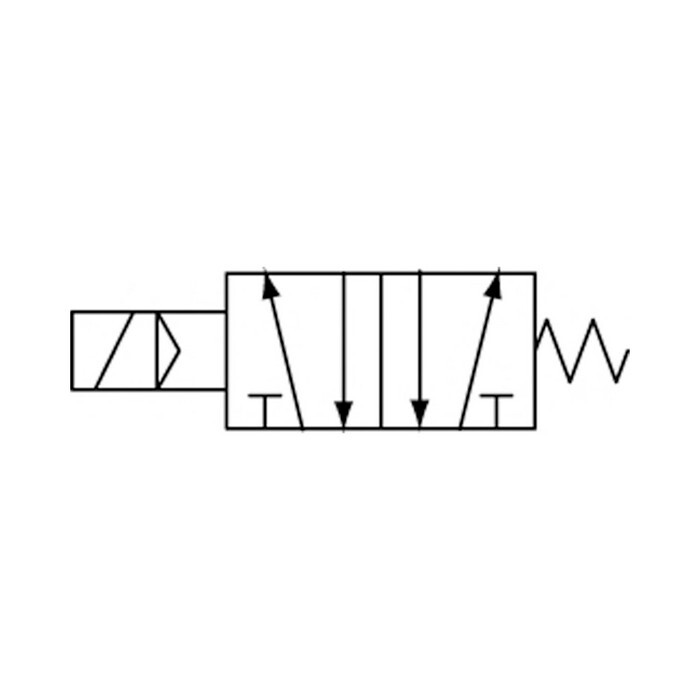

Symbol
35
Temperature range max.
70 °C
Temperature range min.
-20 °C
Valve body
Aluminium alloy
Venting connection
G 1/4
Voltage
230 V, 50 Hz
Working pressure min.
1,5 bar
