Riegler

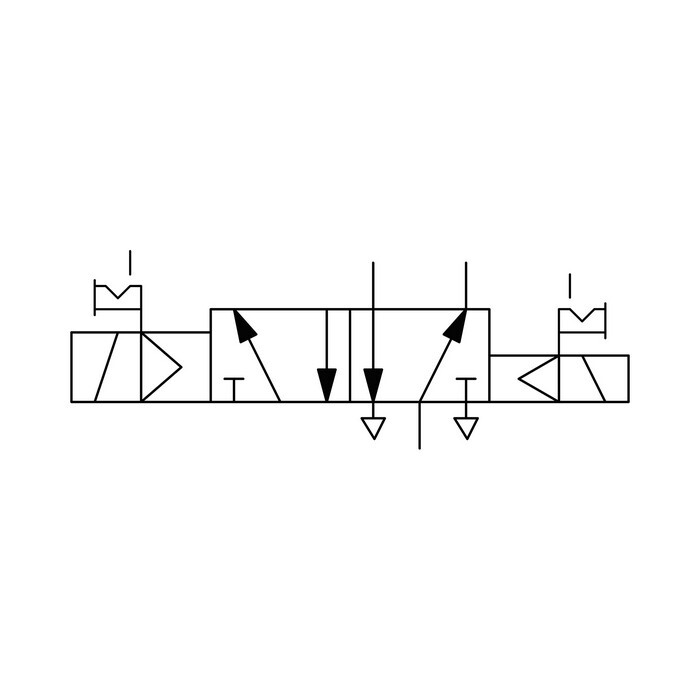

5/2-Wegeventil mit Differenzialkolben

G 1/8, 12 V DC bistabil, elektropneumatisch
Item-no.: 1734071Supplier number: 517.52.18.D.12Dcustoms tariff number: 84818079EAN: 4047322773751
Quantity: ​​ 1 PiecePackable​
Item available in 462 variants:
Short-term Sourcing
Description
5/2-way valve, differential piston, electropneumatic, bistable, G 1/8, 12 V DC, p = 1 … 10 bar, aluminium. Traditional way valves of series 70 in electropneumatic version. These valves have a wide range of applications as bushing valves, direct mounting on the cylinder with special adapters or as series valves with multi-base plates and individual interlinking plates (supply strips).
Attributes
Actuation
Differential piston, bistable
Ambient temperature max.
50 °C
Ambient temperature min.
-10 °C
Connection
G 1/8
DN
5
Durchflusswertmessung 1
Durchfluss bei 6 bar und ∆p 0,5 bar
Durchflusswertmessung 2
Durchfluss bei 6 bar und Δp 1 bar
Flow rate 1
400 Nl/min
Flow rate 2
550 Nl/min
Function
5/2
Lieferumfang
mit Stecker und Spule
Manual override
resting
Max. operating pressure
10 bar
Medium
Filtered compressed air with or without oiling. If oiled, then continuously.
Medium temperature max.
60 °C
Medium temperature min.
-10 °C
Operating pressure min.
1 bar
Sealing material
NBR
Steuerluftanschluss
-
Steuerluftzufuhr
intern
Version
Electropneumatic
Downloads
Bedienungsanleitungbyhx_p_b-234.pdf
327.06 kB
Technische Dokumentation-dbyhx_145860.pdf
2.67 MB
