1398584 #1
Ganter

Spacer

GN 6220-ST-M4-10-A
ST - Steel
Item-no.: 1398584Supplier number: 6220-ST-M4-10-AEAN: 4045525530461
PU (Packaging): 100 PieceQuantity: ​​ 1 PiecePackable​
Item available in 302 variants:
Short-term Sourcing
Description

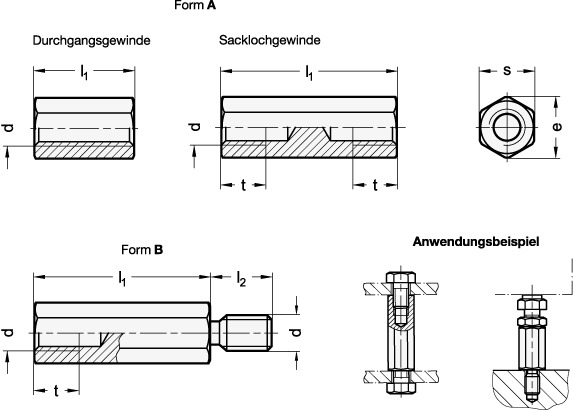

Spacers GN 6220 are commonly used as spacing rods. They allow parts to be fastened with an offset parallel to their mounting plane. Type A is also used as a connecting nut. Any total length can be realized through the combination of multiple spacers.
Attributes
Form
A - internal thread
Length l1 (Form A: through-hole thread)
10
Material
ST - Steel
RoHS
Ja
Screw thread d
M 4
Weight
0.004 kg
e
8
e ≈
8
s
7
tmin.
9
