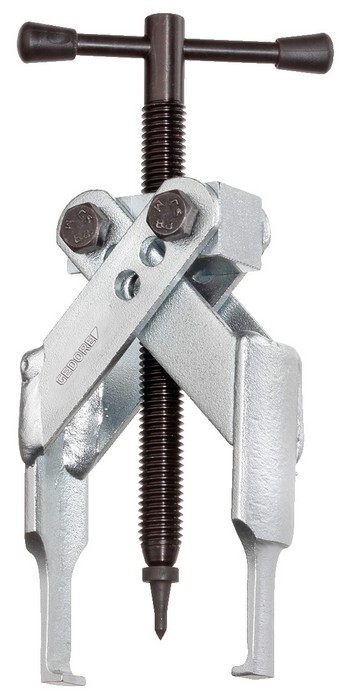

Extra slim hook puller
D.85 mm W.80 mm, 2-armed Gedore 1.23/1XSItem-no.: 1022698Supplier number: 1.23/1XScustoms tariff number: 82055980EAN: 4036976124323
Quantity:
1 Piece
=
1 PackagingPackable
Price and stock visible after login
Description
Very slim forged legs, Particularly suitable for space conditions that are difficult to access, e.g. in the electric motor area, The legs grip automatically
Attributes
Clamping depth usable b
85 mm
Clamping range external puller (max.)
80 mm
Hakenbremse vorhanden
Nein
Hook foot depth usable d2
3,5 mm
Hook foot thickness at the tip e1
2 mm
Hook foot width at the working surface c1
9 mm
Inhalt
1 Stück
Nachrüstbar mit Hydraulikspindel
Nein
Net weight
0,355 kg
Number of arms
2
Schrauben inklusive
Nein
Self-levelling
Ja
Spindel Abrutschsicherung
Nein
Spindle thread size
M 10x1,5 x 100
Tensile force (max.)
0.7 t
Tip diameter
2,9 mm
doppelseitig verwendbare Haken
Nein
umdrehbare Arme vorhanden
Nein
