Adapter set for GN 953
GN 491.1-60-14-1Item-no.: 1350571Supplier number: 491.1-60-14-1customs tariff number: 84879059EAN: 4045525121836
Quantity:
1 Set
=
1 PiecePackable
Your price:
(per SA) Price on request
Price and stock visible after login
Description

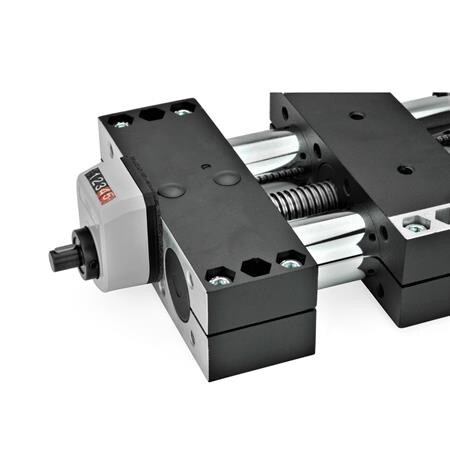

The installation kits GN 491.1 are required for the attachment of a position indicator to double tube linear actuators. They consist of an adapter shaft and, depending on the position indicator, a torque support including mounting screws. Mechanical position indicators GN 953 / GN 954 / GN 955 must be ordered so that the counter is aligned with the rising of the trapezoidal thread spindle. For the position indicators GN 9053 / GN 9054 the respective rising is set at the position indicator for every programming.
Attributes
Code number
1 - for mechanical position indicators GN 953 / GN 954 / GN 955
Colour code 2
51
Connection diameter linear unit d2
14
Diameter linear unit d1
60
For position indicator
GN 953 / GN 9053
L2
18
RoHS
Ja
Weight
0.092 kg
b
70
d3
20
h1
72.5
h2
27.5
l1 Kennz. 1
39
m
55
