Adapter set for GN 955
GN 491.1-18-6-1Item-no.: 1350559Supplier number: 491.1-18-6-1EAN: 4045525121768
Quantity:
1 Set
=
1 PiecePackable
Item available in 9 variants:
Price and stock visible after login
Description

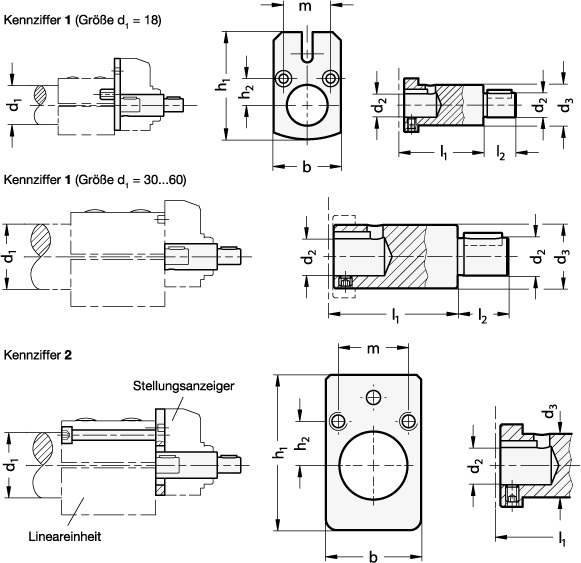

The installation kits GN 491.1 are required for the attachment of a position indicator to double tube linear actuators. They consist of an adapter shaft and, depending on the position indicator, a torque support including mounting screws. Mechanical position indicators GN 953 / GN 954 / GN 955 must be ordered so that the counter is aligned with the rising of the trapezoidal thread spindle. For the position indicators GN 9053 / GN 9054 the respective rising is set at the position indicator for every programming.
Attributes
Code number
1 - for mechanical position indicators GN 953 / GN 954 / GN 955
Connection diameter linear unit d2
6
Diameter linear unit d1
18
For position indicator
GN 955
L2
16
RoHS
Ja
Weight
0.090 kg
b
27
d3
10
h1
38.5
h2
10
l1 Kennz. 1
30
m
20
