Adapter for panel element holder
GN 649.1-48-52 Elesa 49295PA - Kunststoff
PA - plastic
Item-no.: 1224263Supplier number: 649.1-48-52customs tariff number: 39269097EAN: 4045525955752
Quantity:
1 PiecePackable
Price and stock visible after login
Description

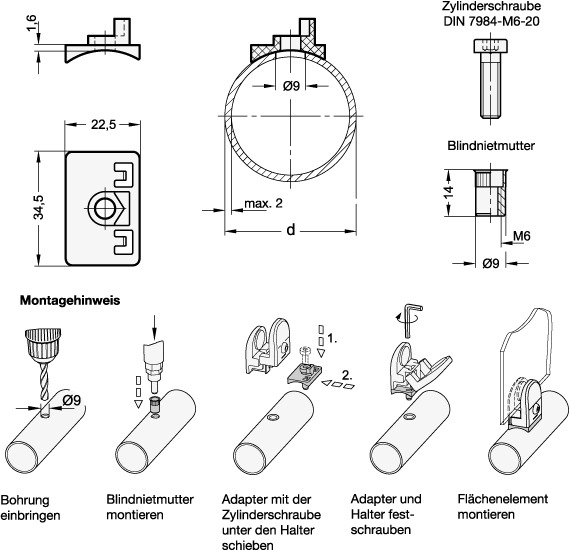

Adapter 649.1 allow panel support clamps GN 649 to be mounted to round tubes. Mounting the M6 blind rivet nut requires a commercial blind rivet nut pliers or a setting tool. The blind rivet nut and the flat socket cap screw DIN 7984-M6 are included parts of the order.
Attributes
Diameter article no.
649.1-48-52
Diameter d
48-52
Material
PA - plastic, polyamide
RoHS
Ja
Weight
0.005 kg
