GSR 12V-15 FC cordless drill driver
2x2.0 Ah batteries, charger in L-Boxx Bosch 0.601.9F6.000Item-no.: 1295671Supplier number: 06019F6000customs tariff number: 84672920EAN: 3165140847322
Quantity:
1 PiecePackable
Price and stock visible after login
Description

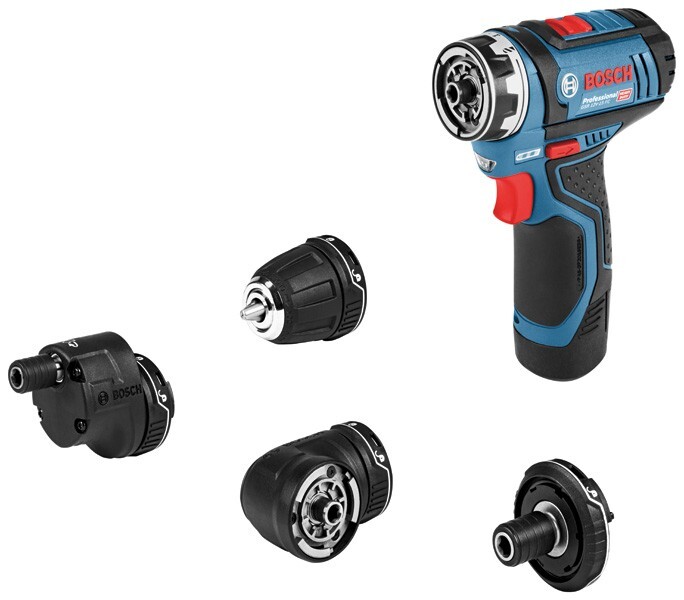

Cordless Drill/Driver GSR 12V-15 FC, Redefine your limits – the flexibility of five solutions in one compact tool, Versatile: Choice of five options – drill driver with a magnetic bit holder, lockable bit holder, drill chuck, angle adapter and offset angle adapter, Compact: Perfect for hard-to-reach places – due to extremely compact design, Performing: Convincing power – thanks to 30 Nm of torque, L-BOXX 102 (1 600 A01 2FZ), Drill chuck attachment GFA 12-B (1 600 A00 F5H), Bit holder attachment GFA 12-X (1 600 A00 F5J), Right angle attachment GFA 12-W (1 600 A00 F5K), Excenter attachment GFA 12-E (1 600 A00 F5L), Quick charger GAL 12V-40 Professional (1 600 A01 9R3), 2 x battery GBA 12V 2.0Ah (1 600 Z00 02X), 1/2 L-BOXX inlay for tool and charger (1 600 A00 2UV), 1/2 L-BOXX inlay 12 V adapters (1 600 A01 1UW)
Attributes
Battery capacity
2.0 Ah
Battery type
Lithium-ion
Battery voltage
12.0 V
Drill chuck clamping range, min./max.
1 / 10 mm
Drill chuck, design
10 mm quick-action drill chuck
Drill-Ø steel, max.
10 mm
Drill-Ø wood, max.
19 mm
Idle speed (1st gear / 2nd gear)
0 - 400 / 0 - 1300 min-1
Idle speed, 1st gear, from
0 min-1
Idle speed, 1st gear, to
400 min-1
Idle speed, 2nd gear, from
0 min-1
Idle speed, 2nd gear, to
1300 min-1
Measurement uncertainty k (drilling in metal)
1.5 m/s²
Measurement uncertainty k (screwing)
1.5 m/s²
Packaging dimensions (width x length x height)
360 x 442 x 119 mm
Screw Ø, max.
7 mm
Torque (hard)
30 Nm
Torque (soft)
15 Nm
Torque (soft/hard/max.)
15/30/- Nm
Torque levels (additional)
1
Torque levels (standard)
20
Torque leves
20+1
Vibration emission value ah [Drilling in metal]
2.5 m/s²
Vibration emission value ah [Screws]
2.5 m/s²
Weight excluding battery
0.6 kg
