Cordless impact wrench
GDR 18V-200 solo in box Bosch 0.601.9J2.105Item-no.: 1572088Supplier number: 06019J2105EAN: 4059952596655
Quantity:
1 PiecePackable
Price and stock visible after login
Description

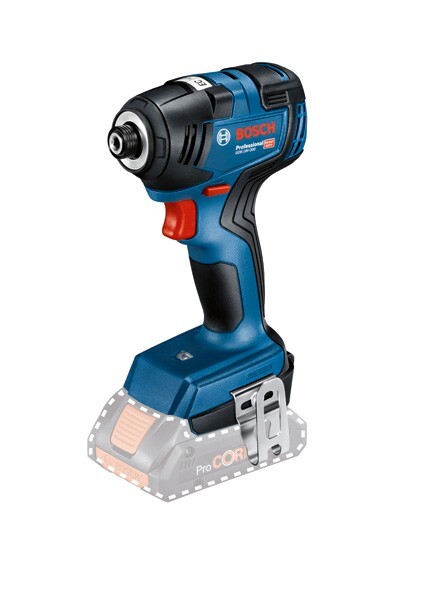

Cordless Impact Driver GDR 18V-200, The GDR 18V-200 Professional cordless impact driver offers an excellent power-to-size ratio with ¼” bit holder. With a head length of 126 mm, this cordless impact driver is suitable for even tight spaces. The GDR 18V-200 is equipped with a brushless motor for a strong tightening torque of 200 Nm, excellent battery runtime and a long tool lifetime. For a better control over speed and torque, this cordless impact driver features a variable speed trigger. The GDR 18V-200 Professional is intended for tightening and removing screws when working in metal sheet, metal and wood. Furthermore, this cordless impact driver is compatible with all Bosch Professional 18 V batteries and chargers (Professional 18V System). Also compatible with AMPShare, the multi-brand battery alliance. It offers also Electronic Cell Protection (ECP), a LED light and a belt clip. Cardboard box
Attributes
Battery voltage
18 V
Idle speed
0-3.400 U/min
Idle speed (1st stage)
0-3.400 min-1
Idle speed, 1st gear, from
0 min-1
Idle speed, 1st gear, to
3.400 min-1
Idle speed, from
0 U/min
Idle speed, up to
3400 U/min
Impact rate
0-4.000 bpm
Impact rate, from
0 bpm
Impact rate, up to
4.000 bpm
Measurement uncertainty k (tightening screws and nuts of maximum permissible size)
1,5 m/s²
Packaging dimensions (width x length x height)
184 x 225 x 96 mm
Screw size
M 6 – M 16
Screw Ø
M 6 - M 16
Tool dimensions (length)
126 mm
Tool holder
1/4'' hexagon uni
Torque, max.
200 Nm
Vibration emission value ah [Tightening of bolts and nuts of maximum permissible size]
14,0 m/s²
Weight excluding battery
1.1 kg
