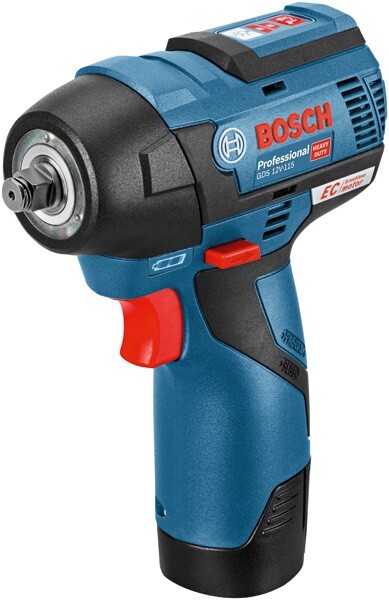

Cordless impact wrench GDS 12V-115
solo in box Bosch 0.601.9E0.101Item-no.: 1439262Supplier number: 06019E0101EAN: 3165140765114
Quantity:
1 PiecePackable
Price and stock visible after login
Description
Cordless Impact Wrench GDS 12V-115, The GDS 12V-115 Professional cordless impact wrench with brushless motor and 3/8" square drive is the most compact solution in Bosch´s 12 V category. Its compactness ensures perfect handling, even in the tightest spaces and overhead. For greater accuracy while screwdriving, the impact driver's 2-stage Power Control prevents the overtightening of small screws. It features a strong motor with 115 Nm of powerful torque, making it appropriate for most conventional cordless impact driver applications. This tool is intended for screws with diameters M 4 – M 12. It is compatible with all Bosch Professional 12 V batteries and chargers (Professional 12V System). The GDS 12V-115 Professional also features charge level indicator, Electronic Cell Protection, Li-ion, speed selection, and variable speed. Cardboard box, L-BOXX inlay for tool
Attributes
Battery voltage
12 V
Idle speed
0-2600 U/min
Idle speed (1st stage)
0-1200 min-1
Idle speed (2nd gear)
0-2.600 min-1
Idle speed, 1st gear, from
0 min-1
Idle speed, 1st gear, to
1.200 min-1
Idle speed, 2nd gear, from
0 min-1
Idle speed, 2nd gear, to
2.600 min-1
Idle speed, from
0 U/min
Idle speed, up to
2600 U/min
Impact rate
0-3.100 bpm
Impact rate (1st stage)
0-2.700 bpm
Impact rate (2nd stage)
0-3.100 bpm
Impact rate, from
0 bpm
Impact rate, up to
3.100 bpm
Measurement uncertainty k (tightening screws and nuts of maximum permissible size)
1,5 m/s²
Packaging dimensions (width x length x height)
215 x 330 x 77 mm
Screw size
M 4 – M 12
Screw Ø
M 4 - M 12
Tool dimensions (length)
137 mm
Tool holder
3/8'' square
Torque leves
2
Torque, max.
115 Nm
Vibration emission value ah [Tightening of bolts and nuts of maximum permissible size]
10,0 m/s²
Weight including battery
0,9 kg
