Bosch

Cordless impact wrench

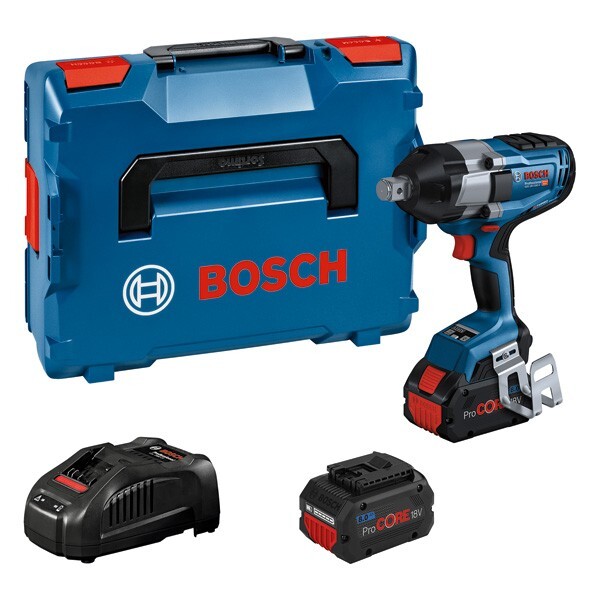

GDS 18V-1050 H with 2x 8 Ah, charger Bosch 0.601.9J8.502
Item-no.: 1572110Supplier number: 06019J8502EAN: 4059952564678

Quantity: ​​ 1 PiecePackable
Short-term Sourcing

Description
Cordless Impact Wrench GDS 18V-1050 H, The GDS 18V-1050 H Professional is the outstanding 3/4" impact wrench with brushless motor for the most diverse fields of application. Its BITURBO Brushless technology combines corded power with cordless freedom fully maximised for ProCORE18V batteries. Whenever heavy-duty performance is needed, the new impact mechanism provides a tightening Torque of 1,050 Nm and breakaway torque of 1,700 Nm for particularly challenging working environments. The high versatility in power controlling is ensured by the 3-speed/torque settings that allow adjustments to the respective work requirements. The main areas of GDS 18V-1050 H Professional are meal applications (M10-M24) like structural steel construction, metal assembly, pipe fitting, truck maintenance, and wood construction. It is compatible with all Bosch Professional 18 V batteries and chargers (Professional 18V System), for maximum power use ProCORE18V ≥ 5.5 Ah. Also compatible with AMPShare, the multi-brand battery alliance. The GDS 18V-1050 H Professional comes with additional figures like ECP, EMP, a tool status indicator, LED light, a 3/4" tool holder with friction ring plus through hole, and a ladder clip. 2 x battery ProCORE18V 8.0Ah (1 600 A01 6GK), Quick charger GAL 1880 CV (1 600 A00 B8G), L-BOXX 136 (1 600 A01 2G0), 1/1 L-BOXX inlay for tool and charger (1 600 A02 58Y), Ladder clip (1600 A02 3G7)
Attributes
Battery voltage
18.0 V
Idle speed
0-800 U/min
Idle speed (1st stage)
0-800 min-1
Idle speed (2nd gear)
0-1200 min-1
Idle speed (3rd gear)
0-1750 min-1
Idle speed, 1st gear, from
0 min-1
Idle speed, 1st gear, to
800 min-1
Idle speed, 2nd gear, from
0 min-1
Idle speed, 2nd gear, to
1200 min-1
Impact rate
0-2600 bpm
Impact rate (1st stage)
0-1600 bpm
Impact rate (2nd stage)
0-2400 bpm
Impact rate (3rd stage)
0-2600 bpm
Impact rate, from
0 bpm
Impact rate, up to
2600 bpm
Leerlaufdrehzahl, bis zu
800 U/min
Leerlaufdrehzahl, von
0 U/min
Maximum breaking torque
1700 Nm
Measurement uncertainty k (tightening screws and nuts of maximum permissible size)
1.5 m/s²
Screw Ø
M 14 - M 24
Tool holder
3/4'' square
Torque adjustment range, max. 1st stange
350 Nm
Torque adjustment range, max. 2nd stange
750 Nm
Torque adjustment range, max. 3rd stange
1050 Nm
Torque adjustment range, min. 1st stange
0 Nm
Torque adjustment range, min. 2nd stange
0 Nm
Torque adjustment range, min. 3rd stange
0 Nm
Torque adjustment range, min./max. 1st stange
0/350 Nm
Torque adjustment range, min./max. 2nd stange
0/750 Nm
Torque adjustment range, min./max. 3rd stange
0/1050 Nm
Torque leves
3
Torque, max.
1050 Nm
Vibration emission value ah [Tightening of bolts and nuts of maximum permissible size]
13.5 m/s²
Weight including battery
3.9 kg
