Description

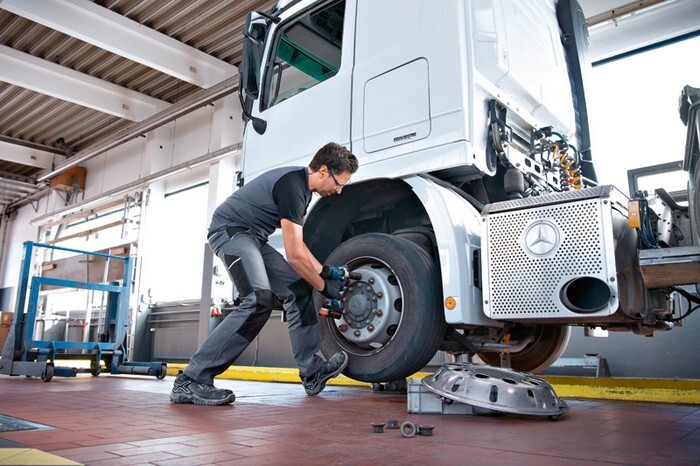

Cordless Impact Wrench GDS 18V-1050 HC, For tough, full-power application, the GDS 18V-1050 HC Professional impact wrench with BITURBO Brushless technology delivers a high-level performance and adjustable mode control. Built-in BITURBO Brushless technology is fully optimised for ProCORE18V batteries, providing a strong 1,050 Nm tightening and 1,700 Nm breakaway torque. High versatility is provided by two default modes on the user interface, metal mode (A) and wood mode (B), preventing broken screwheads and the loss of metal bolts or nuts, by slowing down or shutting off the impact wrench. All modes are quickly customised via the Bosch Toolbox App. Three different speed/torque settings ensure higher flexibility and control. The GDS 18V-1050 HC Professional is the full-power impact wrench for tightening and removing metal bolts and nuts up to M 24 on a variety of jobs like structural steel construction, pipe fitting, vehicle maintenance, or when using screws/lag bolts in wood construction. It is compatible with all Bosch Professional 18 V batteries and chargers (Professional 18V System) for maximum power use ProCORE18V ≥ 5.5 Ah. Also compatible with AMPShare, the multi-brand battery alliance. The GDS 18V-1050 HC Professional is equipped with Electronic Cell Protection (ECP), Electronic Motor Protection (EMP), tool status indicator with LED light, ladder clip, and 3/4” tool holder with friction ring and through hole. 1 x Bluetooth Low Energy module GCY 42 Professional (1 600 A01 6NH), 1/1 L-BOXX inlay for tool and charger (1 600 A02 58Y), L-BOXX 136 (1 600 A01 2G0)
Attributes
BITURBO
Ja
Battery voltage
18.0 V
Gewicht exkl. Akku
2,9 kg
Idle speed
0-1700 U/min
Idle speed (1st stage)
0-800 min-1
Idle speed (2nd gear)
0-1300 min-1
Idle speed (3rd gear)
0-1750 min-1
Idle speed, 1st gear, from
0 min-1
Idle speed, 1st gear, to
800 min-1
Idle speed, 2nd gear, from
0 min-1
Idle speed, 2nd gear, to
1300 min-1
Impact rate
0-2600 bpm
Impact rate (1st stage)
0-1600 bpm
Impact rate (2nd stage)
0-2300 bpm
Impact rate (3rd stage)
0-2600 bpm
Impact rate, from
0 bpm
Impact rate, up to
2600 bpm
Leerlaufdrehzahl, bis zu
1.700 U/min
Leerlaufdrehzahl, von
0 U/min
Maximum breaking torque
1700 Nm
Measurement uncertainty k (tightening screws and nuts of maximum permissible size)
1.5 m/s²
Screw size
M 14 - M 24
Screw Ø
M 14 - M 24
Tool holder
3/4'' square
Torque adjustment range, max. 1st stange
350 Nm
Torque adjustment range, max. 2nd stange
650 Nm
Torque adjustment range, max. 3rd stange
1050 Nm
Torque adjustment range, min. 1st stange
0 Nm
Torque adjustment range, min. 2nd stange
0 Nm
Torque adjustment range, min. 3rd stange
0 Nm
Torque adjustment range, min./max. 1st stange
0/350 Nm
Torque adjustment range, min./max. 2nd stange
0/650 Nm
Torque adjustment range, min./max. 3rd stange
0/1050 Nm
Torque leves
3
Torque, max.
1050 Nm
Vibration emission value ah [Tightening of bolts and nuts of maximum permissible size]
13.5 m/s²
