Bosch

Cordless impact wrench

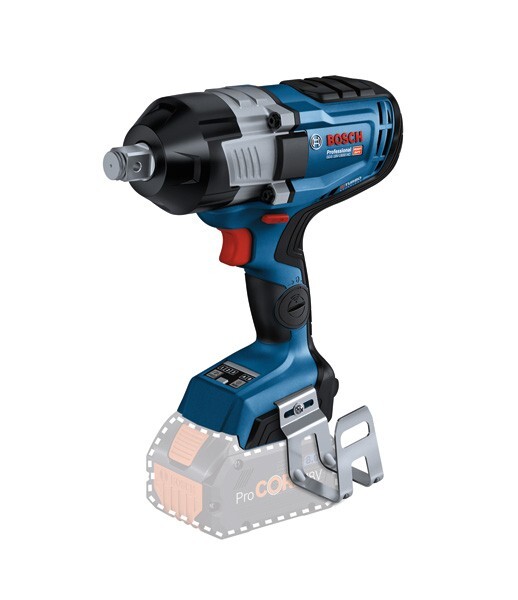

GDS 18V-1600 HC, solo Bosch 0.601.9M1.000
Item-no.: 1673516Supplier number: 06019M1000EAN: 4053423246339

Quantity: ​​ 1 PiecePackable
Short-term Sourcing

Description
Cordless Impact Wrench GDS 18V-1600 HC, The GDS 18V-1600 HC Professional is the exceptionally powerful 3/4" impact wrench with BITURBO Brushless technology for the toughest, heavy-duty applications. The built-in brushless motor combines corded power with cordless freedom and is fully optimised for ProCORE18V batteries, delivering a strong 1,600 Nm tightening and 2,200 Nm breakaway torque. Thanks to the adjustable Auto Bolt Release (ABR) mode, you can avoid the loss or drop-down of metal bolts or nuts when loosening them, ensuring comfortable handling. High versatility in power control is provided by the 3-speed/torque settings that allow adjustments to the respective work requirements. All tool settings can be conveniently adjusted and customised via the Bosch Toolbox App. The exceptionally strong GDS 18V-1600 HC Professional is suitable for all metal applications from M16 to M33 such as structural steel construction, pipe fitting, and maintenance of industrial machinery and construction vehicles. This impact wrench is ideal, whenever utmost power is required to remove rusted and painted bolts and nuts. The tool is compatible with all batteries and chargers in the AMPShare Battery Alliance including all batteries and chargers in the Bosch Professional 18V System. For maximum power, use ProCORE18V ≥ 5.5 Ah. The impact wrench is equipped with Electronic Cell Protection (ECP), Electronic Motor Protection (EMP), a tool status indicator with LED light, a 3/4" tool holder with a friction ring and through hole, and a ladder clip. Carton box, Ladder clip (1600 A02 3G7)
Attributes
BITURBO
Ja
Battery voltage
18.0 V
Idle speed
0-800 U/min
Idle speed (1st stage)
0-800 min-1
Idle speed (2nd gear)
0-1300 min-1
Idle speed (3rd gear)
0-1750 min-1
Idle speed, 1st gear, from
0 min-1
Idle speed, 1st gear, to
800 min-1
Idle speed, 2nd gear, from
0 min-1
Idle speed, 2nd gear, to
1300 min-1
Impact rate (1st stage)
0-1550 bpm
Impact rate (2nd stage)
0-2200 bpm
Impact rate (3rd stage)
0-2350 bpm
Leerlaufdrehzahl, bis zu
800 U/min
Leerlaufdrehzahl, von
0 U/min
Maximum breaking torque
2200 Nm
Measurement uncertainty k (tightening screws and nuts of maximum permissible size)
1.5 m/s²
Tool holder
3/4'' square
Torque adjustment range, max. 1st stange
600 Nm
Torque adjustment range, max. 2nd stange
1100 Nm
Torque adjustment range, max. 3rd stange
1600 Nm
Torque adjustment range, min. 1st stange
0 Nm
Torque adjustment range, min. 2nd stange
0 Nm
Torque adjustment range, min. 3rd stange
0 Nm
Torque adjustment range, min./max. 1st stange
0/600 Nm
Torque adjustment range, min./max. 2nd stange
0/1100 Nm
Torque adjustment range, min./max. 3rd stange
0/1600 Nm
Torque leves
3
Torque, max.
1600 Nm
Vibration emission value ah [Tightening of bolts and nuts of maximum permissible size]
16.5 m/s²
Weight excluding battery
3.2 kg
