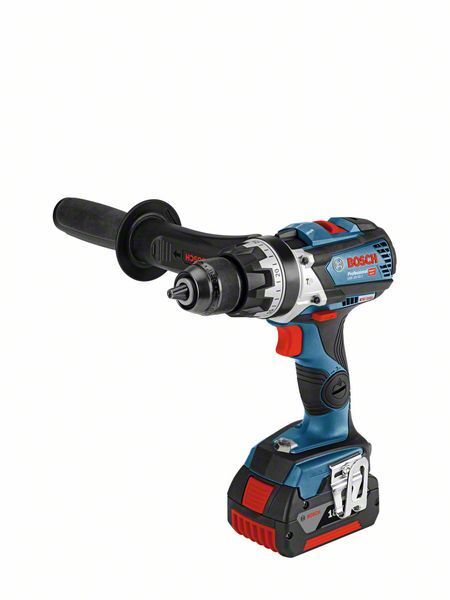

Cordless impact drill
GSB 18V-85 C L-Boxx Bosch 0.601.9G0.302Item-no.: 1386607Supplier number: 06019G0302EAN: 3165140867054
Quantity:
1 PiecePackable
Price and stock visible after login
Description
Akku-Schlagbohrschrauber GSB 18V-85 C Professional. Werkzeugkonfiguration in der 18-Volt-Klasse. Personalisierte Einstellungen wie KickBack Control können per Smartphone an die Anforderungen angepasst und gespeichert werden
Attributes
Additional levels
1
Battery voltage
18 V
Drill chuck clamping range, max.
13 mm
Drill chuck clamping range, min.
1.5 mm
Drill chuck clamping range, min./max.
1.5 / 13 mm
Drill-Ø masonry, max.
16 mm
Drill-Ø steel, max.
13 mm
Drill-Ø wood, max.
82 mm
Idle speed (1st gear / 2nd gear)
0 - 480 / 0 - 2100 min-1
Idle speed, 1st gear, from
0 min-1
Idle speed, 1st gear, to
480 min-1
Idle speed, 2nd gear, from
0 min-1
Idle speed, 2nd gear, to
2100 min-1
Impact rate, max.
31500 min-1
Measurement uncertainty k (drilling in metal)
1.5 m/s²
Measurement uncertainty k (impact bores in masonry)
1.5 m/s²
Measurement uncertainty k (screwing)
1.5 m/s²
Packaging dimensions (height)
155 mm
Packaging dimensions (length)
440 mm
Packaging dimensions (width x length x height)
360 x 440 x 155 mm
Packaging dimensions (width)
360 mm
Screw Ø, max.
12 mm
Tool dimensions (height)
255 mm
Torque (hard)
85 Nm
Torque (max.)
110 Nm
Torque (soft)
47 Nm
Torque (soft/hard/max.)
47/85/110 Nm
Torque leves
25+1
Vibration emission value ah [Drilling in metal]
2.5 m/s²
Vibration emission value ah [Screws]
2.5 m/s²
Vibration emission value ah [percussion drilling in masonry]
12.5 m/s²
