Description

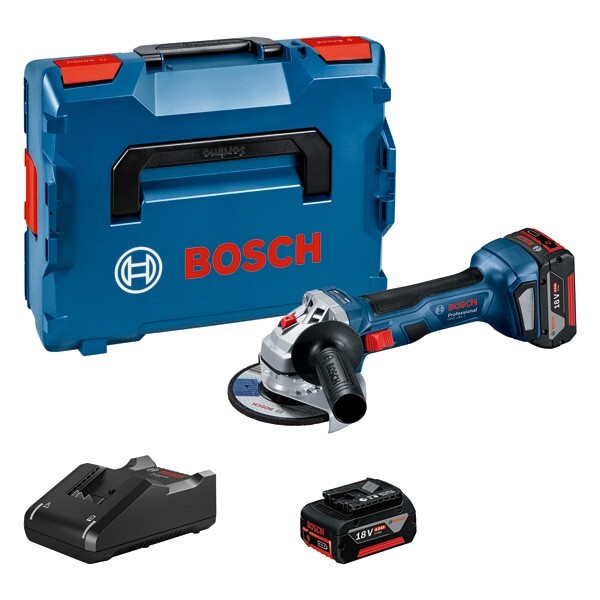

Cordless Angle Grinder GWS 18V-7, The GWS 18V-7 Professional cordless angle grinder is Bosch’s handy answer that offers the convenient combination of solid 18 V cutting performance and compact design. Thanks to its strong brushless motor that delivers the equal of 700 W from a corded angle grinder, users have all the power in their hands that’s necessary to achieve excellent cutting results. Its light weight, the slim grip size, and the keyless guard ensure convenient and comfortable working. Optimised for versatile cutting, this angle grinder’s perfect ergonomics are safeguarded by its balanced design and the slim handle. This angle grinder is the ideal helper for all cutting tasks in metal, tiles, or bricks. It is compatible with all Bosch Professional 18 V batteries and chargers as well as the GDE 125 EA-T dust extraction from Bosch. Also compatible with AMPShare, the multi-brand battery alliance. Backing flange (1 605 703 099), Locking nut (1 603 340 040), Two-hole spanner (1 607 950 043), Protective guard (2 608 000 678), Auxiliary handle (1 602 025 024), 2 x battery GBA 18V 4.0Ah (1 600 Z00 038), Quick charger GAL 18V-40 Professional (1 600 A01 9RJ), L-BOXX 136 (1 600 A01 2G0), 1/1 L-BOXX inlay for tool and charger (1 600 A00 2WH)
Attributes
Battery capacity
4.0 Ah
Battery voltage
18.0 V
Borehole, Ø
22.2 mm
Disc Ø
125 mm
Grinding spindle thread
M14
Idle speed
11000 min-1
Measurement uncertainty k (sanding with sanding sheet)
1.5 m/s²
Measurement uncertainty k (surface grinding (roughing ))
1.5 m/s²
Vibration emission value ah [sanding with sanding sheet]
3.5 m/s²
Vibration emission value ah [surface grinding (roughing)]
7.0 m/s²
Weight including battery
2.2 kg
