Anodised aluminium tube
GN 990-AL-D25-1000-ELAL - Aluminium
Item-no.: 1480679Supplier number: 990-AL-D25-1000-ELcustoms tariff number: 76090000EAN: 4045525329409
Quantity:
1 PiecePackable
Price and stock visible after login
Description
Construction tubes GN 990 can be supplied in these standard lengths. The tolerances specified for the outside diameter of the round construction tubes comply with the requirements for split mono-block connector clamps. Two-piece connector clamps allow obviously larger tolerances on construction tubes.
Attributes

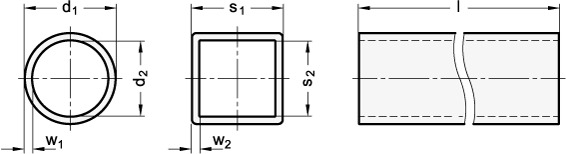

Diameter d
D 25
Length l
1000
Material
AL - Aluminium
RoHS
Ja
Surface
EL - anodised, natural colour
Weight
0.389 kg
d1 / s1
D - Diameter
d2
21
s2
21
w1
2
w2
2
