Anodised aluminium square tube
GN 990-AL-V16-200-ELAL - Aluminium
Item-no.: 1480133Supplier number: 990-AL-V16-200-ELcustoms tariff number: 76090000EAN: 4045525080751
Quantity:
1 PiecePackable
Price and stock visible after login
Description
Construction tubes GN 990 can be supplied in these standard lengths. The tolerances specified for the outside diameter of the round construction tubes comply with the requirements for split mono-block connector clamps. Two-piece connector clamps allow obviously larger tolerances on construction tubes.

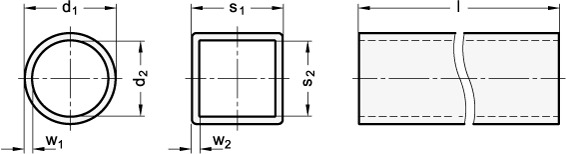

Attributes
Length l
200
Material
AL - Aluminium
RoHS
Ja
Square s1
V 16
Surface
EL - anodised, natural colour
Weight
0.032 kg
d1 / s1
V - Square
d2
13
s2
13
w1
1.5
w2
1.5
