Anodised aluminium square tube
GN 990-AL-V50-1000-ELAL - Aluminium
Item-no.: 1480718Supplier number: 990-AL-V50-1000-ELcustoms tariff number: 76090000EAN: 4045525336896
Quantity:
1 PiecePackable
Price and stock visible after login
Description
Construction tubes GN 990 can be supplied in these standard lengths. The tolerances specified for the outside diameter of the round construction tubes comply with the requirements for split mono-block connector clamps. Two-piece connector clamps allow obviously larger tolerances on construction tubes.
Attributes
Length l
1000
Material
AL - Aluminium
RoHS
Ja
Square s1
V 50
Surface
EL - anodised, natural colour
Weight
1.525 kg

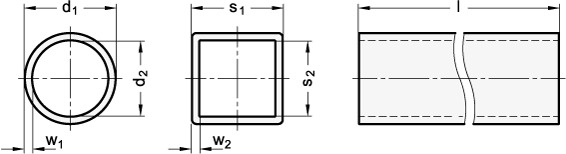

d1 / s1
V - Square
d2
44
s2
44
w1
3
w2
3
