Angle drive
WT 10 G28 PferdItem-no.: 1662495Supplier number: 86300621customs tariff number: 84661038EAN: 4007220419809
Quantity:
1 PiecePackable
Price and stock visible after login
Description

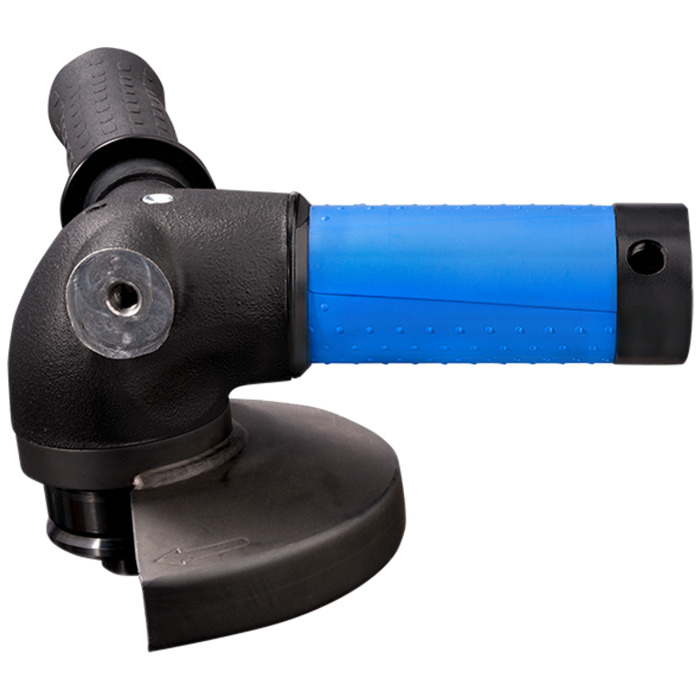

Angle drive for connection to all flexible shafts with G28 connection (instead of handpiece). Connection to flexible shaft can be pivoted 360°. Enables flexible shaft drives to be used as angle grinders. 1 clamping nut, 2 flange screws, 2 spacer sleeves, 2 keys, anti-vibration handle, guard dia. 125 mm.
Attributes
Handpiece side coupling G
28
Height
98 mm
Length metric
173 mm
Maximum drive speed n max.
18000 RPM
Net weight
1.438 kg
Neu im Jahr
2022
Output speed n max.
12000 RPM
PFERD type
WT 10 G28
Transmission ratio
1,53:1
Width metric
40 mm
Ø External metric
98 mm
Ø Thread
M14
Ø Tool holder
22.23 mm
