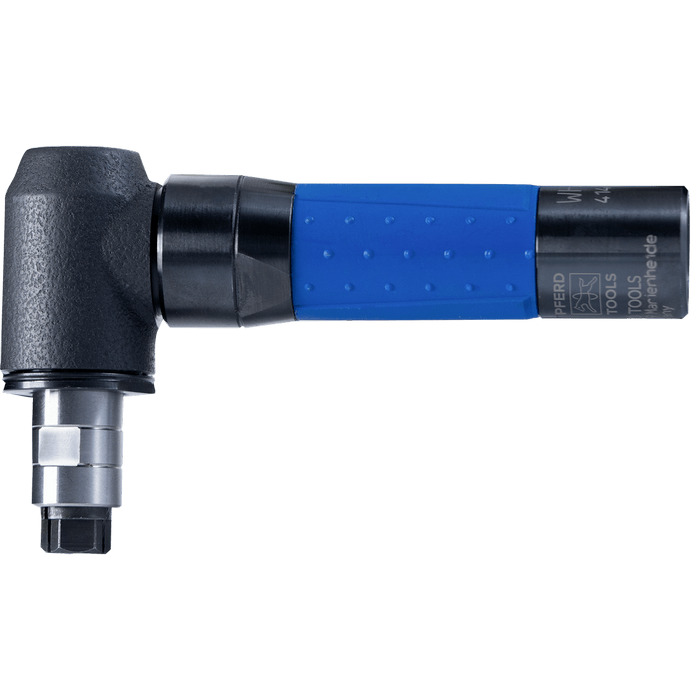

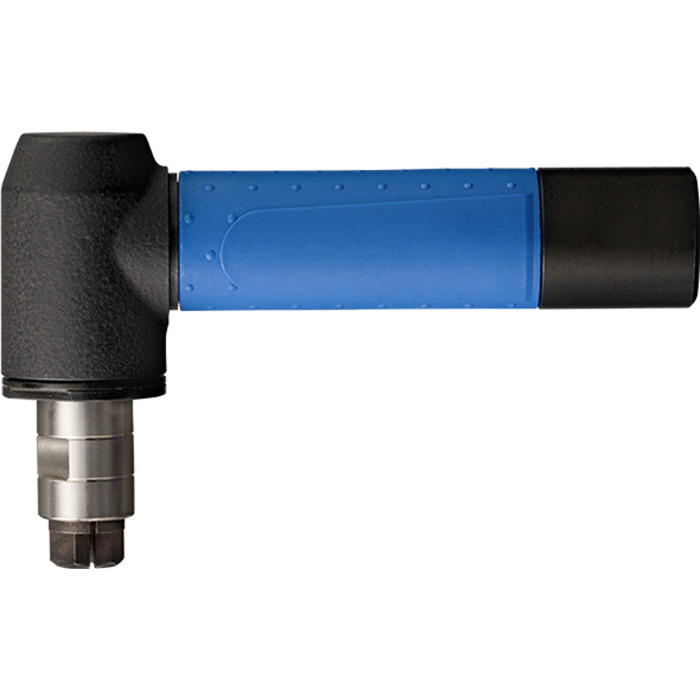

Angled handpiece
WHA 4 90° G16 PferdItem-no.: 1663052Supplier number: 86300121customs tariff number: 84661038EAN: 4007220423127
Quantity:
1 PiecePackable
Price and stock visible after login
Description
Angle handpiece 90° design with 6 mm collet and G16/diameter 16 mm sliding coupling, suitable for BW 4 DIN 10/16, BW 4 DIN 10/16 oHA, BW 6 DIN 10/16, BW 6 DIN 10/16 oHA. 1 each of the following keys: EM SW 11 mm, EM SW 14 mm and EM SW 14 mm, 1 collet.
Attributes
Collet group
6
Handpiece side coupling G
16
Handpiece-side coupling Ø [mm]
16
Handpiece-side coupling Ø metric
16 mm
Height
67 mm
Incl. Ø collet [mm]
6
Length metric
120 mm
Max. RPM
20000 RPM
Net weight
0.304 kg
Neu im Jahr
2023
PFERD type
WHA 4 90° G16
RPM, max.
20000 RPM
Transmission ratio
1,8:1
Width metric
27 mm
Ø External metric
70 mm
