Angled handpiece
WHA 7 90° G22 PferdItem-no.: 1663054Supplier number: 86300122customs tariff number: 84661038EAN: 4007220423134
Quantity:
1 PiecePackable
Price and stock visible after login
Description

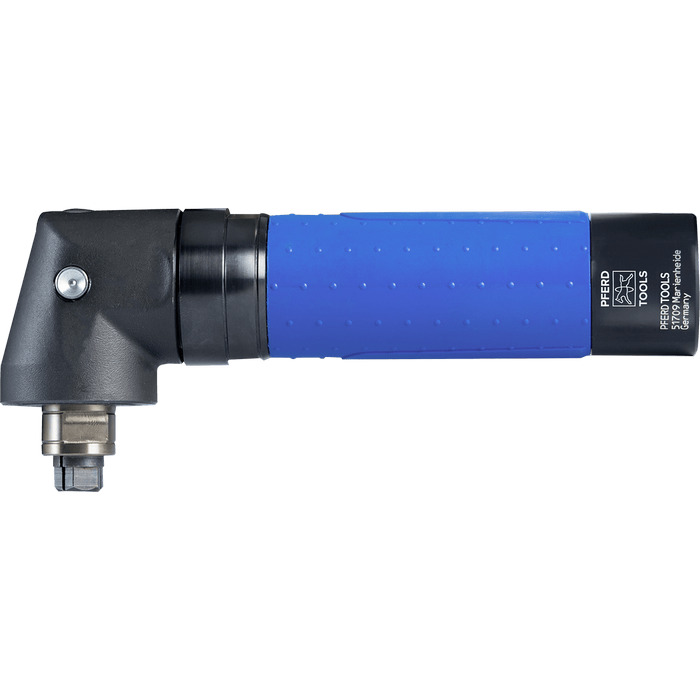

Angle handpiece 90° design with 6 mm collet and G22/diameter 22 mm sliding coupling, suitable for BW 7 DIN 10/16, BW 7 DIN 10/16 2m, BW 7 DIN 10/16 oHA and BW 7 DIN 10/16 oHA 2m. 1 each of the following keys: EM SW 11 mm, EM SW 14 mm and EM SW 14 mm, 1 collet.
Attributes
Collet group
6
Handpiece side coupling G
22
Handpiece-side coupling Ø [mm]
22
Handpiece-side coupling Ø metric
22 mm
Height
67 mm
Incl. Ø collet [mm]
6
Length metric
165 mm
Max. RPM
17100 RPM
Net weight
0.65 kg
Neu im Jahr
2023
PFERD type
WHA 7 90° G22
RPM, max.
17100 RPM
Transmission ratio
1:1
Width metric
38 mm
Ø External metric
67 mm
