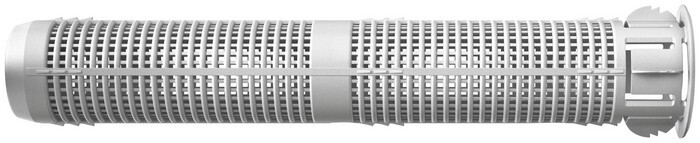

Anchor sleeve
FIS H 16x85 K fischer, for FIS A M8 M10, FIS E M6 M8Item-no.: 1059448Supplier number: 041902
PU (PU NW): 50 PiecePU (Packaging): 50 PieceQuantity:
1 PiecePackable
Price and stock visible after login
Description
article 88562 plastic FIS H K FISCHER injection anchor sleeves FIS H K - dimension: FIS H 16x 85 K PU=S (50 pieces)
Attributes
Anchor per 360 ml cartridge
14
Application conditions
Predominantly static loads
Construction material
Solid brickwork
Dowel length
85 mm
Drill nominal diameter
16 mm
ETA approval
Ja
Filling capacity per sleeve
12 Skt
Filling quantity
12
Hole depth according to ETA
90 mm
Material
Plastic
Max. drilling hole depth
95 mm
Min. anchoring depth
85 mm
Min. drill hole depth
90 mm
Professional / DIY
Professional
Suitable for
FIS A M8-M10, FIS E M6-M8
Test marks / approvals
Fire expertise
Thread dimension (mm)
8 mm
VDS approval
Ja
Version
for plugging in
