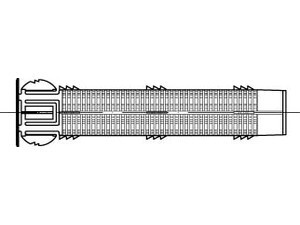

Anchor sleeve
FIS H 20x130 K fischer, for FIS A M12 M16Item-no.: 1059442Supplier number: 046703EAN: 4006209467039
PU (PU NW): 20 PiecePU (Packaging): 20 PieceQuantity:
1 PiecePackable
Price and stock visible after login
Description
article 88562 plastic FIS H K FISCHER injection anchor sleeves FIS H K - dimension: FIS H 20x130 K PU=S (20 pieces)
Attributes
Anchor per 360 ml cartridge
7
Application conditions
Predominantly static loads
Construction material
Solid brickwork
Dowel length
130 mm
Drill nominal diameter
20 mm
ETA approval
Ja
Filling capacity per sleeve
25 Skt
Filling quantity
25
Hole depth according to ETA
135 mm
Material
Plastic
Max. drilling hole depth
140 mm
Min. anchoring depth
110 mm
Min. drill hole depth
135 mm
Professional / DIY
Professional
Suitable for
FIS A M12-M16
Test marks / approvals
Fire expertise
Thread dimension (mm)
12 mm
VDS approval
Ja
Version
for plugging in
