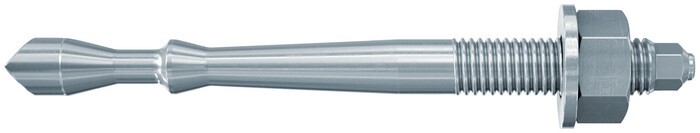

Anchor rod, short version

FHB II-A S M 10x75/20, grey zinc plated fischer Highbond

Item-no.: 1169763Supplier number: 506885customs tariff number: 73181548EAN: 4048962077971

PU (PU NW): 10 PiecePU (Packaging): 10 PieceQuantity:  10 PiecePackable

Your price: (per 100 STK) Price on request

Description

article 88579 steel FHB II-A S zinc plated FISCHER highbond-anchors FHB II-A S, reduced anchorage depth for optimized installation effort - dimension: M 10 x 75/ 20 PU=S (10 pieces)

Attributes

Anchor depth

75 mm

Application conditions

Predominantly static loads

Ausführung (etim)

with threaded end

Borehole depth

90 mm

Construction material

uncracked concrete

Drill nominal diameter

10 mm

ETA approval

Fire protection relevant

Gewindemaß in mm

10 mm

Length (battery)

121 mm

Material

Galvanised steel

Max. thickness of the add-on part

20 mm

Professional / DIY

Professional

Scale parts mortar

Screw thread

M10

Test marks / approvals

Fire expertise

Thread dimension (mm)

10 mm

VDS approval

Version

with external thread

With mortar cartridge

Wrench width

17 mm
