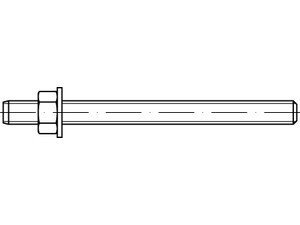

Anchor rod
M 30x430 mm, galvanised fischer FIS A, steel 5.8Item-no.: 1235472Supplier number: 090297EAN: 4006209902974
PU (Packaging): 5 PieceQuantity:
5 PiecePackable
Price and stock visible after login
Description
article 88523 steel FIS A zinc plated FISCHER threaded rods FIS A, with nut and washer - dimension: FIS A M 30x430 PU=S (5 pieces)
Attributes
Application conditions
Predominantly static loads
Ausführung (etim)
with threaded end
Bohrernenndurchmesser in Holz
32 / 34 mm
Construction material
Solid brickwork
Drill nominal diameter
35 mm
ETA approval
Ja
Gewindemaß in mm
30 mm
Height of the disc
5 mm
Height of the nut
24 mm
Length (battery)
430 mm
Material
Galvanised steel 5.8
Max. anchoring depth
360 mm
Max. thickness of the add-on part
276 mm
Min. anchoring depth
120 mm
Min. anchoring depth according to ETA
50 mm
Min. anchoring depth in solid stone
75 mm
Min. drill hole depth
80 mm
Professional / DIY
Professional
Projection
16 mm
Screw thread
M30
Test marks / approvals
ETA - Europäisch Technische Bewertung
Thread dimension (mm)
30 mm
VDS approval
Ja
Version
with external thread
With mortar cartridge
No
