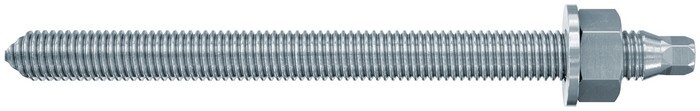

Anchor rod
RG M 20x350, gvz. fischerItem-no.: 1059717Supplier number: 095707customs tariff number: 73181542EAN: 4006209957073
PU (Packaging): 10 PieceQuantity:
10 PiecePackable
Price and stock visible after login
Description
article 88534 steel RG M zinc plated FISCHER anchor rods RG M, with nut and washer - dimension: RG M 20 x 350 PU=S (10 pieces)
Attributes
Ausführung (etim)
with threaded end
Construction material
uncracked concrete
Drill nominal diameter
25 mm
ETA approval
Ja
Height of the disc
3 mm
Height of the nut
16 mm
Length (battery)
350 mm
Material
Galvanised steel 5.8
Max. thickness of the add-on part
236 mm
Min. anchoring depth
90 mm
Professional / DIY
Professional
Projection
11 mm
Screw thread
M20
Suitable cartridge RSB
1 x RSB 20<br/>1 x RSB 20 E / 24
Test marks / approvals
ETA - Europäisch Technische Bewertung
Thread dimension (mm)
20 mm
VDS approval
Ja
Version
with external thread
With mortar cartridge
No
Wrench width
30 mm
Wrench width (hex)
12 mm
