Item-no.: 1177226Supplier number: 095715customs tariff number: 73181535EAN: 4006209957158
PU (PU NW): 10 PiecePU (Packaging): 10 PieceQuantity:
10 PiecePackable
Price and stock visible after login
Description

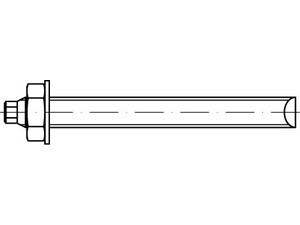

article 88534 A 4 RG M FISCHER anchor rods RG M, with nut and washer - dimension: RG M 24 x 400 PU=S (10 pieces)
Attributes
Construction material
uncracked concrete
Drill nominal diameter
28 mm
ETA approval
Ja
ETA dyn
Ja
Effective length
24-147 mm
Height of the disc
4 mm
Height of the nut
19,2 mm
Length (battery)
400 mm
Material
Stainless steel
Max. thickness of the add-on part
275 mm
Min. anchoring depth
96 mm
Professional / DIY
Professional
Projection
11 mm
Screw thread
M24
Suitable cartridge RSB
1 x RSB 20 E / 24
Test marks / approvals
ETA - Europäisch Technische Bewertung
Thread dimension (mm)
24 mm
VDS approval
Ja
Version
with external thread
With mortar cartridge
No
Wrench width
36 mm
