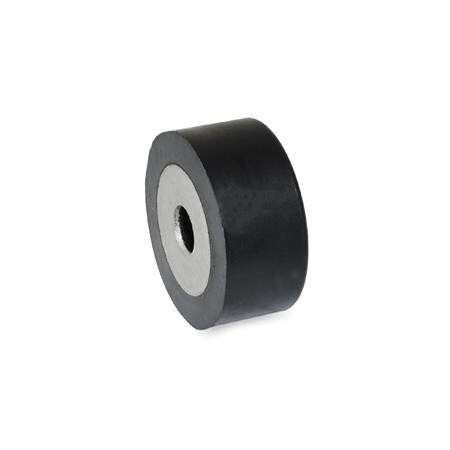

Bump stop
GN 454-16-8-4,3-40 Stainless steel fastening discNI - Stainless steel
Item-no.: 1479774Supplier number: 454-16-8-4,3-40EAN: 4045525906204
Quantity:
1 PiecePackable
Item available in 23 variants:
Price and stock visible after login
Description
Buffers GN 454 are used as end-stop buffers, e.g. for conveyor trolleys. They can be fixed on the damping side with socket cap screws DIN 912. They absorb most of the kinetic energy developing on impact. They act as dampers and prevent damaging shock and rebound. They also act as sound dampers.
Attributes
Federratein Härte 40
75 N/mm
Hardness
40 - soft
Height H
8
Inner diameter d2
4.3
Material
NI - Stainless steel
Max. load capacity in N hardness 40
150
Max. spring travel ≈in mm
2
Outer diameter d1
16
RoHS
Ja
Spring rate ≈in N/mm hardness 40
75
Weight
0.002 kg
d3
8
s
1
