Atex-Ölschauglas, Richtl. 2014/34/Eu
GN 541.6-11-M16X1,5-APA - plastic, polyamide
Item-no.: 1484781Supplier number: 541.6-11-M16X1,5-AEAN: 4045525703742
Quantity:
1 PiecePackable
Item available in 13 variants:
Price and stock visible after login
Description
ATEX-Sight glasses GN 541.6 are suitable for use in an explosion risk environment. They comply with the guidelines 2014/34/EU. A detailed operating instruction is available and included with every sight glass. This allows them to be relatively thin while offering a large window glass. A detailed operating instruction is available and included with every sight glass. Assembly instruction: For mounting on walls of less than 4 mm thickness please use mounting nuts GN 7430.

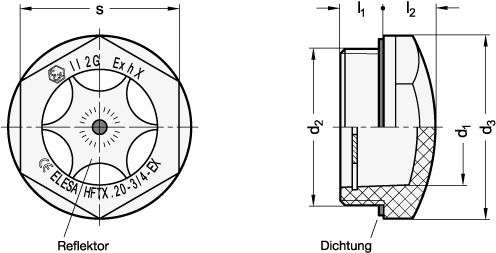

Attributes
Fine thread d2
M 16 x 1,5
Form
A - with reflector
Inspection opening d1
11
L1
8
L2
7
Material
PA - plastic, polyamide
RoHS
Ja
Weight
0.002 kg
d3
22
empfohlenes Anzugsmoment
2 ... 3 Nm
empfohlenes Anzugsmoment in Nm
2 ... 3
s
19
