Locating bolt
DIN 6321-8-10-B cylindricalST - Steel
Item-no.: 1209134Supplier number: DIN 6321-8-10-Bcustoms tariff number: 73269098EAN: 4045525619746
PU (Packaging): 5 PieceQuantity:
1 PiecePackable
Item available in 32 variants:
Price and stock visible after login
Description

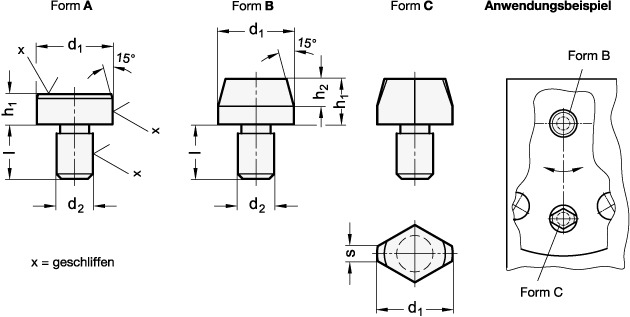

Workholding bolts DIN 6321 are inserted into bores for positioning, assisted by the flattened design (type C) to compensate tolerances in the spacing of two bores. Another application of this design is to fix parts to be positioned in one direction only. Types A and B can also be used as bearing surfaces, stops or as foot.
Attributes
Diameter
8
Form
B - Mounting bolt high, circular
Height
6
Height h1
10
Length l
9
Material
ST - Steel
RoHS
Ja
Weight
0.005 kg
d2
6
