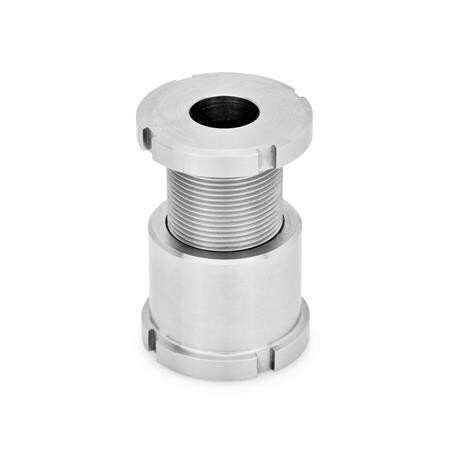

Levelling element
GN 350-25-6,6-A-NI Stainless steel, without lock nutNI - Stainless steel
Item-no.: 1200847Supplier number: 350-25-6,6-A-NIEAN: 4045525457553
Quantity:
1 PiecePackable
Item available in 32 variants:
Price and stock visible after login
Description
Stainless steel leveling sets GN 350 are used for leveling and linking operations. They comprise a threaded upper sleeve and an internal threaded lower sleeve. The fine thread allows a stepless and precise setting and locking using the C-Spanner DIN 1810. A locking ring serves also as a height limiter for the max. height. Normally this screw is permanently and securely locked by the static load created when the mounting screw is tightened. Should this not be sufficient, the use of a locknut (Type AK) is recommended.

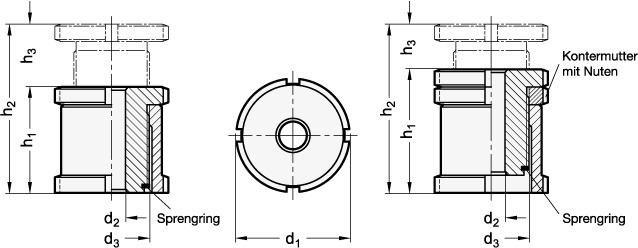

Attributes
Article no. hook wrench
1810-A25-28
Borehole diameter d2
6.6
F2
20.2
For screw
M 6
Form
A - without lock nut
Form AK
33
Material
NI - Stainless steel
Outer diameter d1
25
RoHS
Ja
Static load capacity F in kNF1
27.1
Statische BelastbarkeitF in kNF1
27.1
Weight
0.069 kg
d3
M 15 x 1
h1 Form A
28
h1Form A
28
h2
43
h3 Adjustment range Form A
15
