Levelling element
GN 350-25-6,6-A-ST without lock nutST - Steel
Item-no.: 1200848Supplier number: 350-25-6,6-A-STEAN: 4045525457232
Quantity:
1 PiecePackable
Item available in 32 variants:
Price and stock visible after login
Description
Leveling sets GN 350 are used for leveling and linking operations. They comprise a threaded upper sleeve and an internal threaded lower sleeve. The fine thread allows a stepless and precise setting and locking using the C-Spanner DIN 1810. A locking ring serves also as a height limiter for the max. height. Normally this screw is permanently and securely locked by the static load created when the mounting screw is tightened. Should this not be sufficient, the use of a locknut (Type AK) is recommended.
Attributes
Article no. hook wrench
1810-A25-28

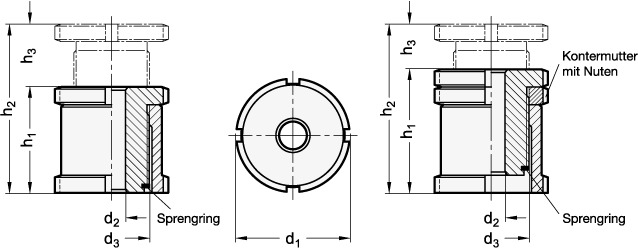

Borehole diameter d2
6.6
F2
30.7
For screw
M 6
Form
A - without lock nut
Form AK
33
Material
ST - Steel
Outer diameter d1
25
RoHS
Ja
Statische Belastbarkeit F in kN F1
40
Weight
0.069 kg
d3
M 15 x 1
h1 Form A
28
h2
43
h3 Adjustment range Form A
15
