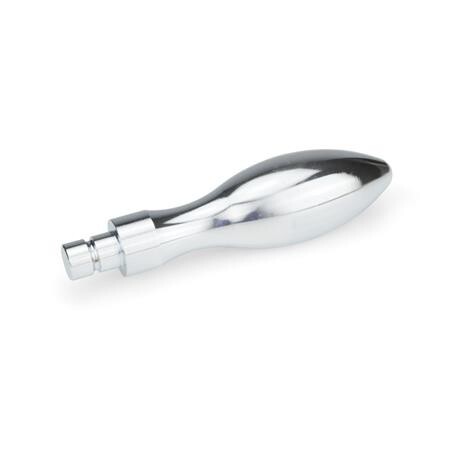

Ball handle, fixed
DIN 39-ST-16-D polished, cylindrical pinST - Steel
Item-no.: 1201459Supplier number: DIN 39-ST-16-Dcustoms tariff number: 84879059EAN: 4045525232693
PU (Packaging): 10 PieceQuantity:
1 PiecePackable
Item available in 13 variants:
Price and stock visible after login
Description
On the official DIN standard sheet you can find the additional sizes 10 and 13.

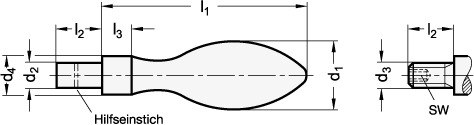

Attributes
Form
D - with cylindrical spigot
Handle diameter d1
16
L1
50
L2
11
Material
ST - Steel
RoHS
Ja
Screw thread
M 6
Weight
0.043 kg
d2 Form DST
7
d4
10
l1 ≈
50
l3
7
sw Hexagon socket
3
sw Innensechskant
3
