Ball handle, fixed
DIN 39-ST-25-D polished, cylindrical pinST - Stahl
Item-no.: 1201460Supplier number: DIN 39-ST-25-Dcustoms tariff number: 84879059EAN: 4045525232853
PU (Packaging): 5 PieceQuantity:
1 PiecePackable
Price and stock visible after login
Description
On the official DIN standard sheet you can find the additional sizes 10 and 13.
Attributes

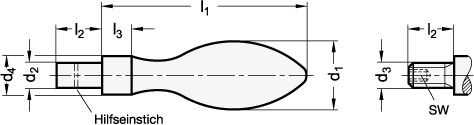

Form
D - with cylindrical spigot
Handle diameter d1
25
L1
80
L2
14
Material
ST - Steel
RoHS
Ja
Screw thread
M 10
Weight
0.182 kg
d2 Form DST
10
d4
16
l1 ≈
80
l3
10
sw Hexagon socket
5
sw Innensechskant
5
