Fastening set for adjustable slide
GN 900.1-30-41-A Hole for cheese head screwAL - Aluminium
Item-no.: 1214408Supplier number: 900.1-30-41-AEAN: 4045525511712
Quantity:
1 Set
=
1 PiecePackable
Item available in 8 variants:
Price and stock visible after login
Description

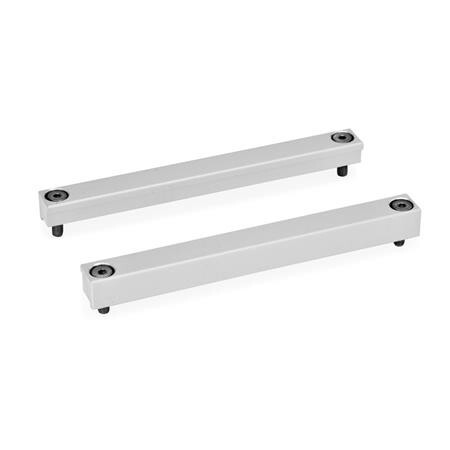

Fastening units GN 900.1 are fitted to the base of the adjustable slide units GN 900 from the operator’s side. The mounting is made on the outside ledge of the slide so that the inner slide can still be moved. A fastening unit GN 900.1 consists of two mounting rails. Four Stainless Steel-cap screws are included.
Attributes
Form
A - with hole for cheese head screw
L2
35.4
Length l1
41
Material
AL - Aluminium
RoHS
Ja
Weight
0.007 kg
Width B
30
d1 für Zylinderschrauben DIN 912
2.7
d2
M 2,5
h
4.2
l3
41
l4
35.4
l5
6.5
