Fastening set for adjustable slide
GN 900.1-80-105-B with mounting threadAL - Aluminium
Item-no.: 1214412Supplier number: 900.1-80-105-Bcustoms tariff number: 84798997EAN: 4045525511774
Quantity:
1 Set
=
1 PiecePackable
Price and stock visible after login
Description
Fastening units GN 900.1 are fitted to the base of the adjustable slide units GN 900 from the operator’s side. The mounting is made on the outside ledge of the slide so that the inner slide can still be moved. A fastening unit GN 900.1 consists of two mounting rails. Four Stainless Steel-cap screws are included.

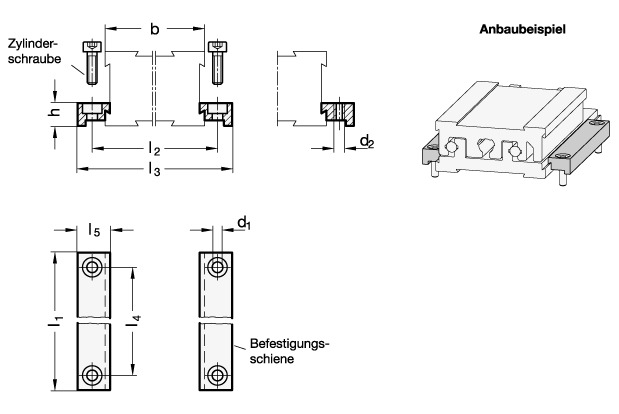

Attributes
Form
B - with mounting thread
L2
92
Length l1
105
Material
AL - Aluminium
RoHS
Ja
Weight
0.087 kg
Width B
80
d1 für Zylinderschrauben DIN 912
4.5
d2
M 4
h
12.5
l3
105
l4
92
l5
14.5
